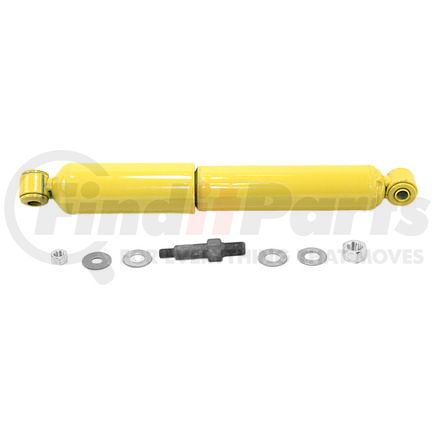

MONROE 34736 Gas-Magnum Suspension Shock Absorber

Name: Monroe 34736 Gas-Magnum Suspension Shock Absorber
SKU: 34736
Price: 51.49 USD
Availability: InStock

Tap to view 3 more

MSRP: $81.14

$51.49

Save $29.65

Limited availability at this price!

In Stock

Get it by Wednesday, Mar 4

No Hassle Return Policy Details

Free Economy shipping on orders over $499 details

Orders placed before 2pm EST will ship same day

MONROE 34736 Part Description

Gas-Magnum Suspension Shock Absorber

DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee

Lower Mount Code	LS36
Upper Mount Code	L1/CP1
Dust Shield Included	Yes
Includes Bump Stop	No
Internal Rebound Bumper	No
Hydraulic Lockout	No
Part Description	Shock Absorber
Compressed Length	10.375 IN
Dust Shield Material	Metal
Extended Length	16 in
Gas Charged	Yes
Lower Mount Type	Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.5/16" Sleeve OAL
Parts Pack(s)	P00019
Travel Length	5.625 in
Upper Mount Type	L1/CP1
Compressed Length	263.5 MM
Extended Length	406.4 MM
Travel Length	142.9 MM
Upper Mount Type	Loop Bushing and Cantilever Pin Mount - 1/2" Stud Diameter X 1 1/16" Stud Length (Center of Loop to Frame)
Shock Absorber Rod End Measuring Point	Center of Loop
Shock Absorber Body End Measuring Point	Center of Loop
Lower Mount Type	Loop (Eyelet) Bushing and Sleeve
Lower Mount Code	LS36
Upper Mount Code	L1/CP1
Mounting Hardware Included	Yes
Grade Type	Premium
Active or Passive Suspension	Passive
Adjustable Compression	No
Adjustable Rebound	No
Adjustable Ride Height	No

MSDS Sheet Number	01170
Country of Origin (Primary)	CN
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708800050
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598049704
VMRS Code	016008003
UNSPSC	25172011
