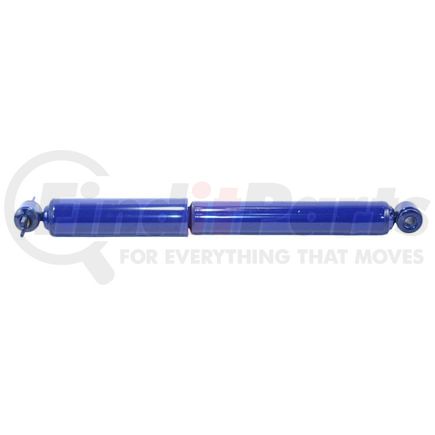

(888) 312-8812 Login SignupMONROE 32306 Monro-Matic Plus Suspension Shock Absorber
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MONROE 32306 Part Description
Manufacturer
Product Description
Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32306 Specifications
Product Attributes
| Lower Mount Code | LS24 |
| Upper Mount Code | XP7 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 12.5 IN |
| Dust Shield Material | Metal |
| Extended Length | 19.625 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.3/8" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 7.125 in |
| Upper Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
| Compressed Length | 317.5 MM |
| Extended Length | 498.5 MM |
| Travel Length | 181 MM |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS24 |
| Upper Mount Code | XP7 |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598026811 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32306 Cross References
| Brand | Part Number |
|---|---|
| 32306MM, FT1Z1761748BA | |
| AUTOZONE | MS34-32022B, TS34-32042B |
| AutoZone | MS3432022B, TS3432042B |
| Duralast | MS3432022B |
| FCS | 342558 |
| FCS AUTO PARTS | 342558 |
| GABRIEL | 81929, G63722, 61616 |
| Jeep | 4886533AB, 4886533AC, 4886533AE, 4886533AF, 4886533AG, 4886533AI, 4897567AA, 5015547AA, 5114318AA, 5114318AB, 5174153AA, 52060450AA, 52087835, 52087835AB, 52088651, 52088651AD, 52088651AH, 52088651AJ, 56052342AA, 56052342AB |
| KYB | 344403, 565021, KG54324, 565097 |
| MasterPro Shocks and Struts | JP105 |
| Monroe Shocks & Struts | 59374 |
| NAPA Proformer | SH81929 |
| NAPA Response | 94199 |
| Sensen | 12130304 |
| UNITY AUTOMOTIVE | 2-253310-001, 253310, 4-213170-253310-001 |
MONROE 32306 Fits Vehicles
- Jeep TJ (1997-2006)
- Jeep Wrangler (1997-2006)
