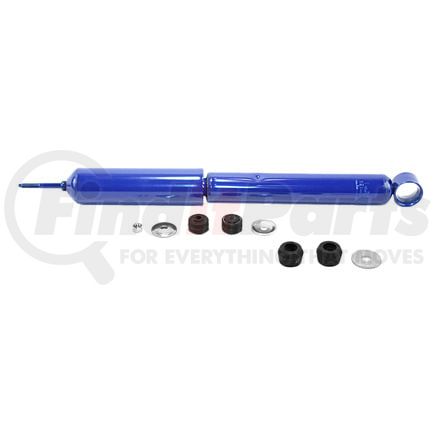

(888) 312-8812 Login SignupMONROE 32248 Monro-Matic Plus Suspension Shock Absorber
Tap to view 3 more
$3849
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Mar 6
MONROE 32248 Part Description
Manufacturer
Product Description
Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32248 Specifications
Product Attributes
| Lower Mount Code | L3 |
| Upper Mount Code | S4 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 12.875 IN |
| Dust Shield Material | Metal |
| Extended Length | 20.875 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
| Parts Pack(s) | P01134,P00081 |
| Travel Length | 8 in |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 327 MM |
| Extended Length | 530.2 MM |
| Travel Length | 203.2 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing |
| Lower Mount Code | L3 |
| Upper Mount Code | S4 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598025319 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32248 Cross References
| Brand | Part Number |
|---|---|
| 32248MM, FS7Z5467112FE | |
| AUTOZONE | TS33-32892B |
| AutoZone | TS3332892B |
| GABRIEL | 81906, G63548, 61588 |
| KYB | KG5475, 565059 |
| NAPA Proformer | SH81906 |
| NAPA Response | 94113 |
| Sensen | 12130191 |
| Toyota | 4851139715, 4851139725, 4851139775, 4851139885, 4851180014, 4853180082, 4853180083, 4853180088, 4853180089, 4853180102, 4853180157 |
MONROE 32248 Fits Vehicles
- Toyota 4Runner (1990-1995)
