NGK SPARK PLUGS 4652 Part Description
Manufacturer
Product Description

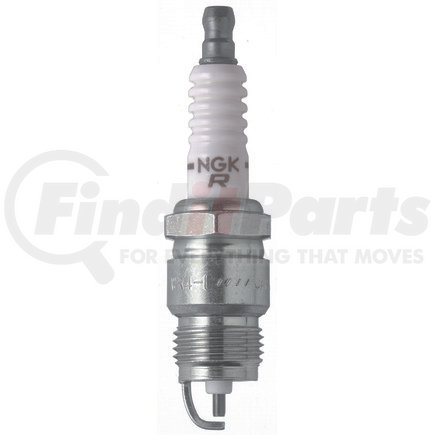

NGK V-Power Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode with V-groove provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
SPARK PLUG
NGK SPARK PLUGS 4652 Specifications
Product Attributes
| Part Number | WR4-1 |
| Stock Number | 4652 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .040 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16 IN |
| Insulator Height | 58.6 MM |
| Manufacturer Heat Range | 4 |
| Seat Type | Tapered |
| Reach | 0.539 IN |
| Thread Diameter | 18.00 MM |
| Center Electrode Design | Standard |
| Center Electrode Projection | Extra-Long Projection |
| Short Style Spark Plug | No |
| Service Number | WR4-1 |
| Washer(s) Included | No |
| Grade Type | Standard Replacement |
| Hex Size | 13/16" |
| Insulator Height | 2.31 IN |
| Thread Diameter | 0.701 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.28 IN |
| Thread Size | M18 - 1.5 |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 1.0 MM |
| Reach | 13.7 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 7.0 MM |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | BR |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00087295146521 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS 4652 Cross References
NGK SPARK PLUGS 4652 Fits Vehicles
- Mercury Comet (1971-1972)
- Ford F-350 (1987-1996)
- Ford F-250 (1987-1996)
- Ford F-150 (1987-1996)
- Ford E-350 Econoline Club Wagon (1987-1996)
- Ford E-350 Econoline (1987-1996)
- Ford E-250 Econoline Club Wagon (1987-1991)
- Ford E-250 Econoline (1987-1996)
- Ford E-150 Econoline Club Wagon (1987-1996)
- Ford E-150 Econoline (1987-1996)
- Ford Bronco (1987-1992)
