NGK SPARK PLUGS 1116 Part Description
Manufacturer
Product Description

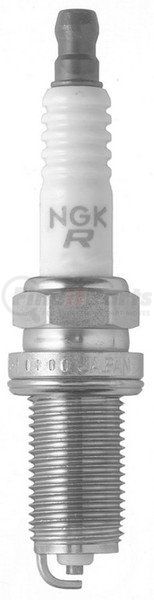

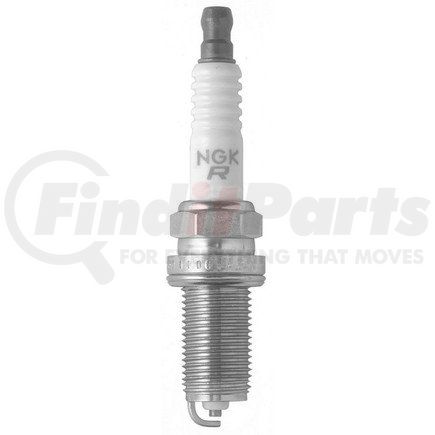

NGK V-Power Spark Plug Shop Pack
Features & Benefits
- NGK V-Power spark plugs offer reliable performance and improved ignitability over standard nickel plugs. Actual OE or equivalent replacement spark plug.
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode with V-groove provides consistent performance

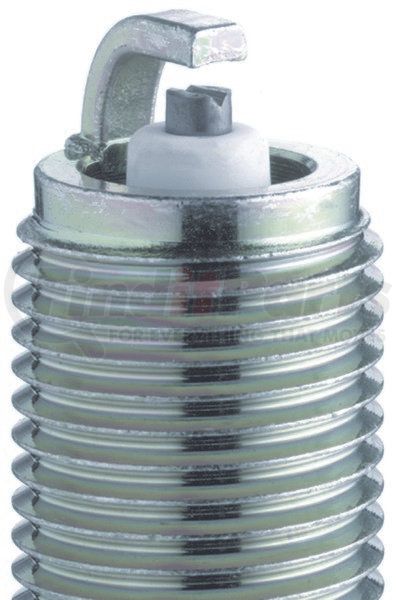

- The special V-cut center electrode and concave ground electrode of NGK's V-Power spark plug increases ignitability. Engineered specifically for OE applications.
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK V-Power spark plugs are tested to the highest OE standards. Trivalent metal plating eliminates the need for anti-seize. For even greater performance consider upgrading to a NGK Iridium IX Spark Plug.
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
SPARK PLUG
NGK SPARK PLUGS 1116 Specifications
Product Attributes
| Part Number | LFR5A-11 S25 |
| Stock Number | 1116 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .044 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8 IN |
| Insulator Height | 50.5 MM |
| Manufacturer Heat Range | 5 |
| Seat Type | Flat |
| Reach | 26.5 MM |
| Thread Diameter | 14.00 MM |
| Short Style Spark Plug | No |
| Service Number | LFR5A-11 S25 |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.99 IN |
| Reach | 1.043 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.12 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Thread Size | M14 - 1.25 |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 1.1 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 3.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295011164 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS 1116 Cross References
| Brand | Part Number |
|---|---|
| AUTOLITE | APP5325 |
| Bosch | FR8ME |
| Champion Spark Plug | 975, REC10YC4 |
| DENSO Auto Parts | 3482, 6076, K16HPR-U11, K16HR-U11 |
| E3 SPARK PLUGS | E368 |
| Mazda | 1N15-18-110 |
| Mercury Marine | 33-859495Q |
| N/A | 1P0M-18-110 |
| NGK | 1116 |
| NGK SPARK PLUGS | LFR5A-11 S25, 1116 |
| Nissan | 22401-8H515 |
| Torch | K5RTM |
| Yamaha | 94702-00391, 94709-00391 |
NGK SPARK PLUGS 1116 Customer Reviews
No reviews yet
Be the first to review this product!
NGK SPARK PLUGS 1116 Manufacturer Information
Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
