BILSTEIN 24-187497 Part Description
Manufacturer
Product Description
B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
Application Summary
No Applications
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application

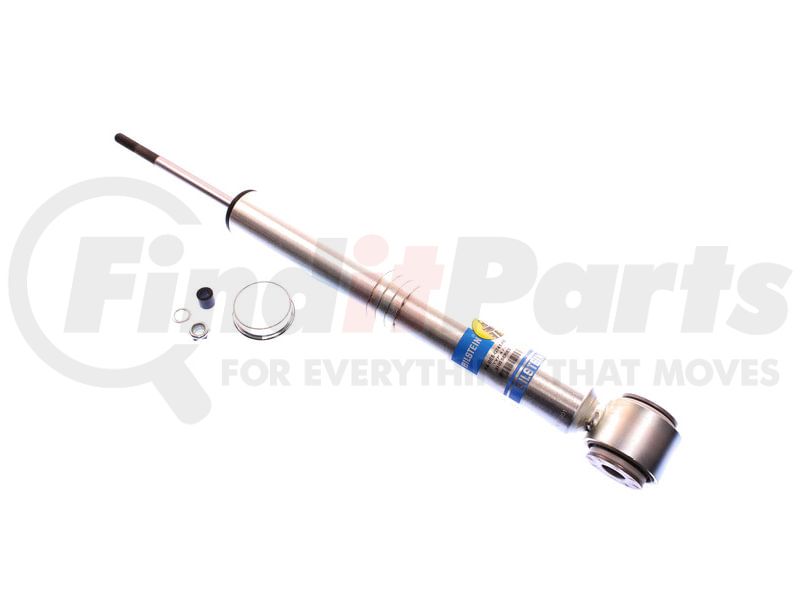

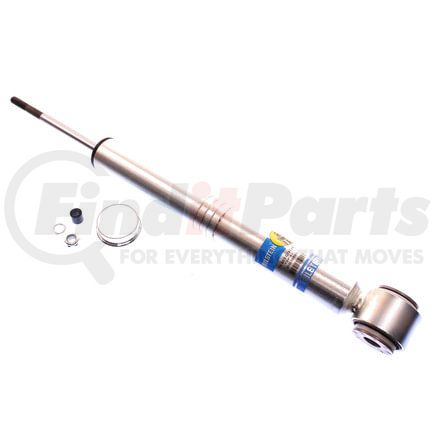

46mm Monotube Shock Absorber
BILSTEIN 24-187497 Specifications
Product Attributes
| Finish | Zinc Plated |
| Collapsed Length (mm) | 430.0 |
| Title | Bilstein Shock Absorbers |
| Body Design | 46mm ID Snap Ring Grooved Body (Coilover) |
| Boot Included | No |
| Lower Mount Type | Eye 20.3mm |
| Parttype | Shocks / Struts |
| Spring Seat Included | No - Reuse OEM |
| RESERVOIR | No |
| Series | B8 5100 (Ride Height Adjustable) |
| Prop 65 (Y/N) | Y |
| Collapsed Length (in) | 16.93 |
| Extended Length (in) | 21.83 |
| Upper Mount Type | Stem |
| Extended Length (mm) | 554.5 |
| Segment | Light Truck |
| Internal Design | Monotube |
| Stroke/Travel Length (IN) | 4.90 |
| Stroke/Travel Length (mm) | 124.5 |
| Shaft Diameter | 14mm |
Additional Information
| Remanufactured Part | N |
| Refurbished Part | N |
| Warranty Special | Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| UPC | 00651860642185 |
