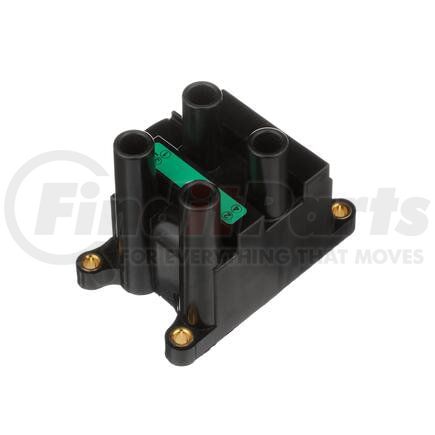

(888) 312-8812 Login SignupSTANDARD IGNITION FD-501 Distributorless Coil
Tap to view 4 more
MSRP: $196.85
$5649
Save $140.36
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
STANDARD IGNITION FD-501 Part Description
Manufacturer
Product Description
Distributorless Coil
Features & Benefits
- 100% pure copper windings in primary and secondary bobbins improve durability and provide higher resistance to internal shorts and dielectric breakdown
- Thermoplastic housing withstands heat stress for enhanced durability
- Internal core made from grain-oriented electrical steel limits loss factor within magnetic circuit to reduce heat that may reduce coil endurance
- Neodymium magnet produces max high voltage output at all speeds
- Stainless steel spring resists corrosion
- Tin-plated brass terminals improve electrical contact and protect against corrosion
- High-dielectric epoxy injected into case and pulled into vacuum to eliminate air pockets and prevent moisture intrusion or thermal breakdown
- #1 Recommended Ignition Coil by Professional Technicians and Parts Professionals
- Direct Fit OE Replacement: Each ignition coil is a direct-fit OE replacement ensures ease of installation
- Engineered specifically for Ford and Mazda vehicles
- European Manufactured: Engineered and manufactured in Europe
- Performs in Extreme Temperatures: Advanced epoxy technology won't break down in high heat conditions
- Tested and Validated: Our coils are extensively tested in the lab and on vehicles to ensure long term reliability in all operating conditions
STANDARD IGNITION FD-501 Specifications
Product Attributes
| Voltage | 12 |
| Color | Black |
| Mounting Position | External |
| Ignition Type | Distributorless |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Connector Quantity | 1 |
| Mount Type | Bolt On |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Contents | Ignition Coil |
Additional Information
| Country of Origin (Primary) | PL |
| Harmonized Tariff Code (HTS) | 8511300080 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00091769518158 |
STANDARD IGNITION FD-501 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 89057151, C564 |
| Advan-tech | 2M5 |
| Airtex | 5C1118 |
| Autopart International | 2505-08254 |
| BREMI | 5054 |
| BWD | E238 |
| BWD Intermotor | E238 |
| Beck/Arnley | 178-8308, 178-8404 |
| CARQUEST Premium By WELLS | 52-1709 |
| CARQUEST Standard | 26335 |
| Cartek | 50103 |
| DENSO | 673-6009 |
| Duralast | C1336, C1341 |
| Echlin | IC379 |
| Ford | 1S7G12029AB, 1S7Z12029AA, 1S7Z12029AB, 1S7Z12029AD |
| HOLSTEIN | 2IGC0027 |
| Hitachi Automotive | IGC0112 |
| Import Direct | 23-0187 |
| Karlyn | 5054 |
| Kem | 355G |
| Mazda | 1F2018100, 1F2018100A, LF0118100, LF0118100A, LF2018100A, YFTT1810X, ZZC01810X |
| Motorad | 2IC144 |
| Motorcraft | DG489, DG544 |
| N/A | GN10185, 193175411, 26C1081, FD-501 |
| NAPA Mileage Plus | IC379SB |
| NGK | 49078 |
| NGK SPARK PLUGS | U2103, 49078 |
| Original Engine Management | 50103 |
| PRENCO | 36-1171 |
| SPEC | C1341SPEC |
| Spectra Premium | C-559 |
| T Series | FD501T |
| Valucraft | C1341VC |
| Walker Products | 920-1025 |
STANDARD IGNITION FD-501 Fits Vehicles
- Mazda 6 (2003-2005)
- Mazda B2300 (2001-2009)
- Ford Ranger (2001-2012)
