(888) 312-8812 Login SignupNGK SPARK PLUGS 3486 NGK Standard Spark Plug
Tap to view 3 more
$1249
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 18
NGK SPARK PLUGS 3486 Part Description
Manufacturer
Product Description

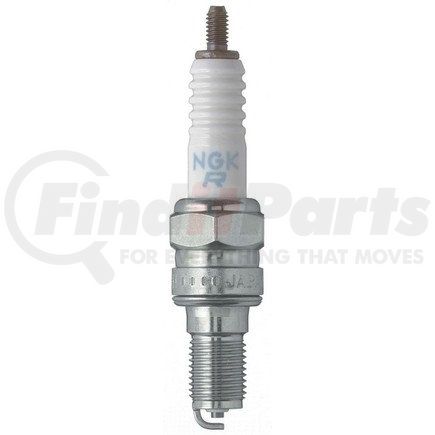

NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
CR7EH-9 S-PLUGS
NGK SPARK PLUGS 3486 Specifications
Product Attributes
| Stock Number | 3486 |
| Part Number | CR7EH-9 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Stud |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .036 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8 IN |
| Insulator Height | 48.8 MM |
| Manufacturer Heat Range | 7 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 10.00 MM |
| Short Style Spark Plug | No |
| Service Number | CR7EH-9 |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.92 IN |
| Thread Diameter | 0.394 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.06 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Thread Size | M10 - 1.0 |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.9 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 1.65 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295134863 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS 3486 Cross References
NGK SPARK PLUGS 3486 Fits Vehicles
- Honda CTX1300 (2014)
- Honda ST1300 ABS (2003-2010, 2012)
- Honda ST1300 (2003-2010)
