NGK SPARK PLUGS 3686 Part Description
Manufacturer
Product Description

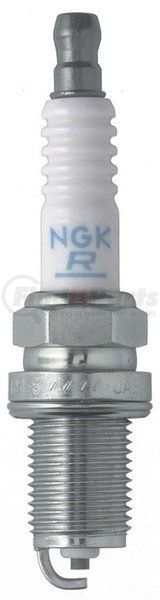

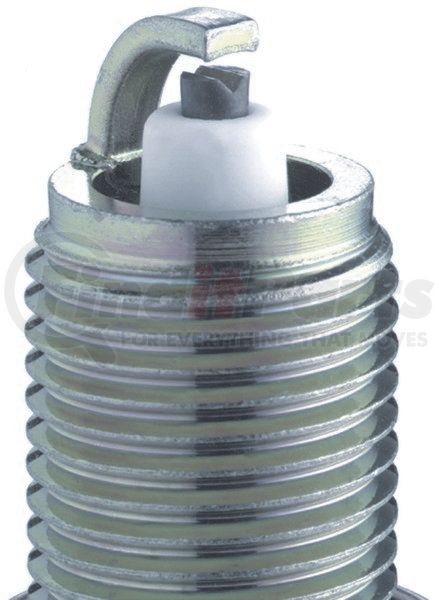

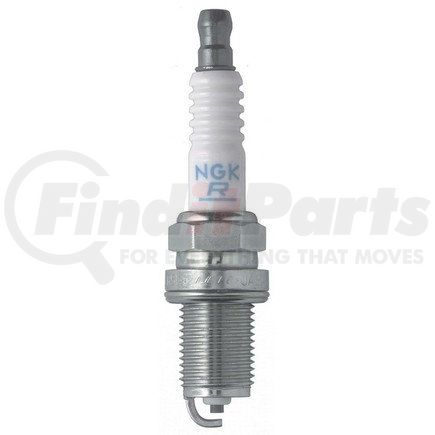

NGK V-Power Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode with V-groove provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
FR45 S-PLUGS
NGK SPARK PLUGS 3686 Specifications
Product Attributes
| Stock Number | 3686 |
| Part Number | FR45 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .060 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8 IN |
| Insulator Height | 50.5 MM |
| Manufacturer Heat Range | 4 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 14.00 MM |
| Short Style Spark Plug | No |
| Service Number | FR45 |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.99 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.16 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Thread Size | M14 - 1.25 |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 1.5 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 4.0 MM |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00087295136867 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS 3686 Cross References
NGK SPARK PLUGS 3686 Fits Vehicles
- Pontiac Safari (1987-1989)
- Pontiac Parisienne (1986)
- Oldsmobile Toronado (1985)
- Oldsmobile Custom Cruiser (1985-1990)
- Oldsmobile Delta 88 (1985)
- Oldsmobile Cutlass Supreme (1985-1988)
- Oldsmobile Cutlass Salon (1985-1987)
- Chevrolet Caprice (1986-1990)
- Cadillac Brougham (1987-1990)
- Cadillac Fleetwood (1986)
- Buick Riviera (1985)
- Buick Regal (1986-1987)
- Buick LeSabre (1985-1990)
- Buick Electra (1985-1989)
- Plymouth Voyager (1996-2000)
- Plymouth Grand Voyager (1996-1997)
- Plymouth Breeze (1996-2000)
- Dodge Stratus (1995-2000)
- Dodge Grand Caravan (1996-1997)
- Dodge Caravan (1996-2000)
- Chrysler Voyager (2000)
- Chrysler Sebring (1996-1998)
- Chrysler Cirrus (1995-1997, 1999-2000)
