(888) 312-8812 Login SignupRAYBESTOS 980361R Raybestos R-Line Brake Rotor
MSRP: $118.71
$8399
Save $34.72
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 11
RAYBESTOS 980361R Part Description
Manufacturer
Product Description

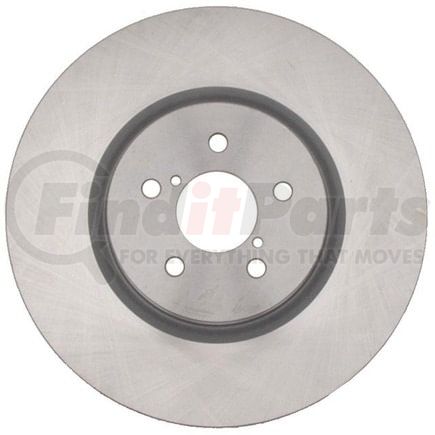

Raybestos R-Line Brake Rotor
Application Summary
2018-2014 Subaru Forester Front, 2014-2010 Subaru Outback Front, 2014-2005 Subaru Legacy Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980361R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.3 IN |
| Center Hole Diameter | 58.0 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.1 IN |
| Discard Thickness | 28.0 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.9 IN |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.9 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.2 IN |
| Nominal Thickness | 30.1 MM |
| Outside Diameter | 12.4 IN |
| Outside Diameter | 315.7 MM |
| Overall Height | 2.2 IN |
| Overall Height | 56.9 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
| Inside Diameter | 6.8 IN |
| Inside Diameter | 172.0 MM |
| Surface Type | Smooth |
| Bearings Included | No |
| Construction | Full Cast |
| Grade Type | Regular |
| Maximum Brake Diameter (Discard) | 315.6 MM |
| Rust Resistant Coating | Yes |
| Weight [cntrc] Kgs | 10.4 |
| Weight [cntrc] Lbs | 23.0 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352839010 |
RAYBESTOS 980361R Cross References
RAYBESTOS 980361R Fits Vehicles
- Subaru Forester (2014-2018)
- Subaru Outback (2010-2014)
- Subaru Legacy (2005-2014)
