(888) 312-8812 Login SignupRAYBESTOS 980361R2 Raybestos R-Line+ Brake Rotor
Tap to view 5 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980361R2 Part Description
Manufacturer
Product Description

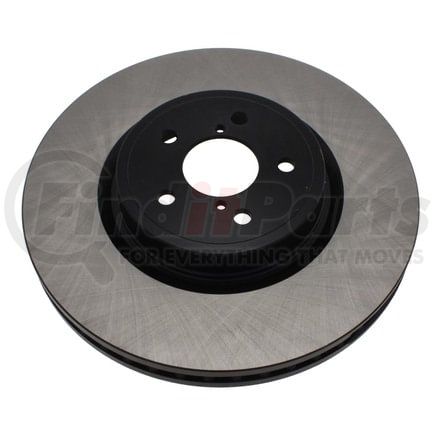

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 980361R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.3 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.1 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.9 IN |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.2 IN |
| Outside Diameter | 12.4 IN |
| Overall Height | 2.2 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 58.0 MM |
| Discard Thickness | 28.0 MM |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Diameter | 12.9 MM |
| Nominal Thickness | 30.1 MM |
| Outside Diameter | 315.7 MM |
| Overall Height | 56.9 MM |
| Inside Diameter | 6.8 IN |
| Inside Diameter | 172.0 MM |
| Surface Type | Smooth |
| Bearings Included | No |
| Construction | Full Cast |
| Grade Type | Regular |
| Maximum Brake Diameter (Discard) | 315.6 MM |
| Rust Resistant Coating | Yes |
| Weight [cntrc] Kgs | 10.4 |
| Weight [cntrc] Lbs | 23.0 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213448207 |
RAYBESTOS 980361R2 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 145751, YH145751, YH145751C, YH145751P |
| AutoZone | 44321, 44321DG, 44321DL |
| Autopartsource | 477340 |
| Autoxtra | AX900494, AX900494P |
| Bendix | PRT5657, PRT5751 |
| Bosch | 48011480 |
| BrakeBest | 48011480, 980361, 980361FZN, 980361R, 980361RGS |
| Brembo | 09.A870.10, 09.A870.11, 09.A870.1X |
| Casting Numbers | 211733-C |
| Centric Parts | 120.47024, 120.47024CRY, 121.47024, 126.47024CSL, 126.47024CSR, 126.47024SL, 126.47024SR, 127.47024CL, 127.47024CR, 127.47024L, 127.47024R, 128.47024CL, 128.47024CR, 128.47024L, 128.47024R, 227.47024L, 227.47024R, 320.47024 |
| Dura Corp | BR31408, BR900494, BR90049402 |
| DuraGo | 900494, BR900494 |
| Monroe Brakes | BD180004 |
| Newtek Automotive USA | 31408 |
| PowerStop | JBR1318EVC |
| Promax | 14-31408 |
| Qualis | 44321 |
| Subaru | 26300AG000, 26300AG001, 26300AG02A |
| TopNotch | TN980361GEO |
| UAP | 31408 |
| Ultra Brake | SU-795 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X51787 |
| WABCO - Archived | PS180004 |
| WORLDPAC | 1407-79966, 1427-530229 |
| Wagner Brake | BD180004, BD180004E |
| Winhere | 6620630 |
RAYBESTOS 980361R2 Fits Vehicles
- Subaru Outback (2010-2014)
- Subaru Forester (2014-2018)
- Subaru Legacy (2005-2014)
