RAYBESTOS 981914R2 Part Description
Manufacturer
Product Description

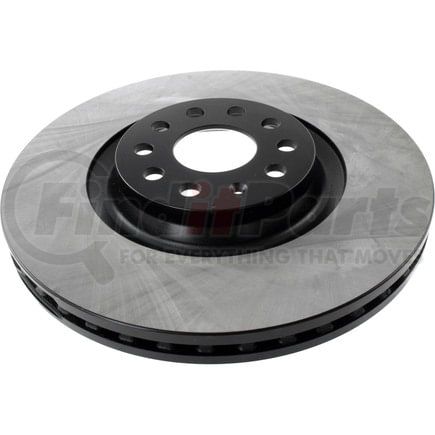

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 981914R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.559 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.063 IN |
| Inside Diameter | 8.11 IN |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 0.591 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Outside Diameter | 13.386 IN |
| Overall Height | 1.976 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 65 MM |
| Discard Thickness | 27 MM |
| Inside Diameter | 206 MM |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 15 MM |
| Nominal Thickness | 30 MM |
| Outside Diameter | 340 MM |
| Overall Height | 50.2 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213449365 |
RAYBESTOS 981914R2 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH423656, YH423656P |
| Audi | 5QN615301A, 4M0615301BJ, 5Q0615301F, 5Q0615301G, 5Q0615301H, 5Q0615601D, 5Q0615601E, 5WA615301, 5WA615301B, 83A615301D, 83A615302D |
| AutoZone | 78032DG, 78032DL |
| Brembo | 09.C306.11, 09.C306.1S, 09.C306.1X |
| Centric Parts | 120.33144, 121.33144, 125.33144, 125.33144CRY, 126.33144CSL, 126.33144CSR, 126.33144SL, 126.33144SR, 127.33144L, 127.33144R, 128.33144CL, 128.33144CR, 128.33144L, 128.33144R, 320.33144, 320.33144C |
| Dura Corp | BR901686, BR901686-01 |
| DuraGo | BR901686, BR901686-01 |
| Dynamic Friction Company | 604-74034 |
| NAPA BRAKES | SDK6675 |
| PowerStop | EBR1497EVC |
| Qualis | 45882 |
| TopNotch | TN981914GEO |
| Volkswagen | 1K0615301AD, 5Q0615301G, 3C0615301C, 3C0615301D |
| Wagner Brake | BD180806E |
RAYBESTOS 981914R2 Fits Vehicles
- Seat Tarraco (2019-2020)
- Volkswagen Tiguan Limited (2018)
- Volkswagen Golf SportWagen (2018-2019)
- Volkswagen Golf Alltrack (2018-2019)
- Audi RS3 (2023-2024)
- Volkswagen Passat (2009-2010)
- Volkswagen CC (2009-2017)
- Audi A3 (2014, 2019-2020, 2022-2024)
- Audi A3 Quattro (2019-2020, 2022-2025)
- Audi Q3 (2019-2025)
- Volkswagen Jetta (2019-2025)
- Volkswagen Arteon (2019-2023)
- Volkswagen Tiguan (2018-2024)
- Volkswagen Golf (2015-2017, 2019-2021)
- Volkswagen Golf R (2015-2019, 2022-2024)
- Volkswagen GTI (2015-2024)
- Audi S3 (2014-2020, 2022-2025)
