BILSTEIN 41-326022 Part Description
Manufacturer
Product Description
B8 8112 (ZoneControl CR) - Front Left Corner Module
Application Summary
Toyota Tundra 2021-2007
Features & Benefits
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling

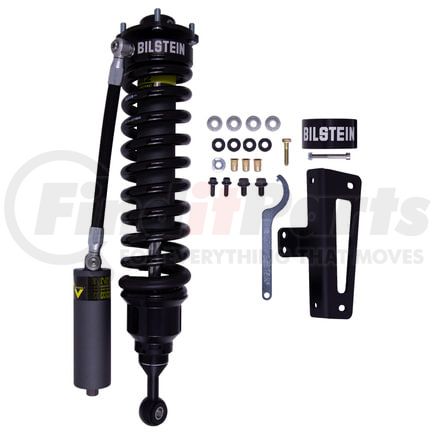

60mm Front Left Corner Module
BILSTEIN 41-326022 Specifications
Product Attributes
| Upper Mount Type | Special |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (id) | 60mm |
| Segment | Light Truck |
| Title | Bilstein Shock Absorbers |
| Adjustable Damping | Non-Adjustable |
| Collapsed Length (in) | 19.43 |
| Extended Length (in) | 25.79 |
| Parttype | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Spring Seat Included | Yes |
| Series | B8 8112 (ZoneControl CR) |
| Extended Length (mm) | 655.1 |
| Internal Design | Monotube |
| Collapsed Length (mm) | 493.6 |
| Finish | Dampers: EVO Grey/Springs: Black |
| Body Material | Steel |
| Boot Included | No |
| Lower Mount Type | Eye 16.1mm |
| RESERVOIR | Yes |
| Front Main Spring Rate (lbs/in) | 650 lbs |
| Piston Diameter | 60mm |
| Shaft Diameter (MM) | 22.0 |
| Aftermarket Upper Arms Required | Yes |
Additional Information
| MSDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| Remanufactured Part | N |
| Refurbished Part | N |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00651860890982 |
BILSTEIN 41-326022 Cross References
| Brand | Part Number |
|---|---|
| Bilstein | 41-284544 |
| FOX Offroad Shocks | 880-02-367 |
| ICON Vehicle Dynamics | 58750 |
| King Shocks | 25001-143 |
BILSTEIN 41-326022 Fits Vehicles
- Toyota Tundra (2007-2021)
