ICON 58750 Part Description
Manufacturer
Product Description

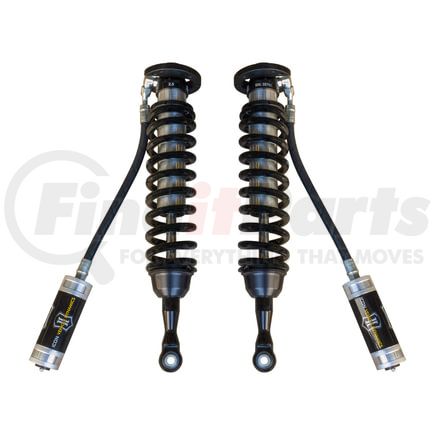

07-21 TUNDRA/08-22 SEQUOIA 2.5 VS RR COILOVER KIT
Features & Benefits
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- Vehicle specific shock length yields maximum wheel travel
- Height-adjustable coilovers offer 1.-3" of lift height adjustment over stock
- 2.5" diameter shock bodies with remote reservoirs
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
OEM Wheels & Tires Fitment: Yes
2.5 VS RR COILOVR KT
ICON 58750 Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-on Part | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 in |
| California Prop 65 Warning | Yes |
| Coil Over Springs Included | Yes |
| Compressed Length | 18.88 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 25.43 IN |
| 10107 | 600 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Maximum Lift | 3 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Lift | 1 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 6” Backspace / 25mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate | 600 |
| Spring Rate Type | Linear |
| Title | ICON 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia, V.S. 2.5 Series Coilover Kit, Remote Reservoir |
| Travel Length | 6.55 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Additional Information
| Warranty Special | 1 Year-Shocks; Limited Lifetime-Coil Springs |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103404479 |
ICON 58750 Cross References
ICON 58750 Fits Vehicles
- Toyota Sequoia (2008-2022)
- Toyota Tundra (2007-2021)
