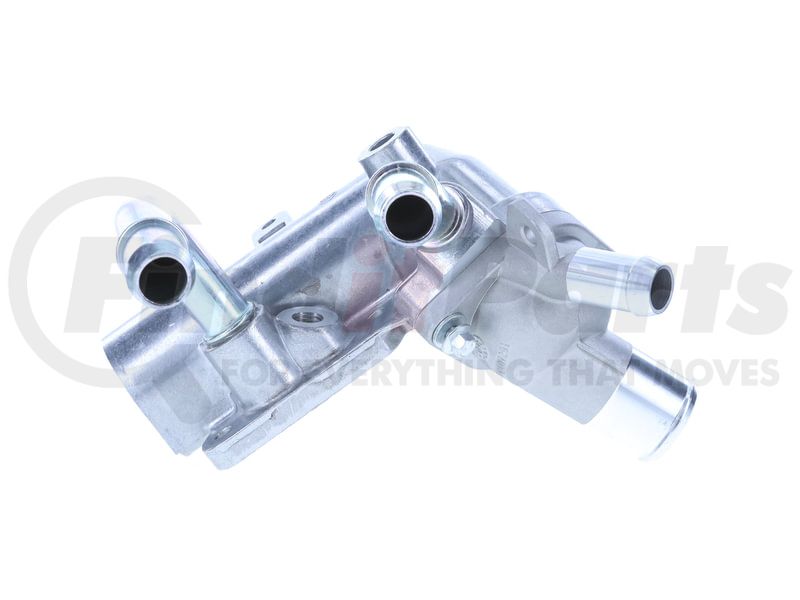

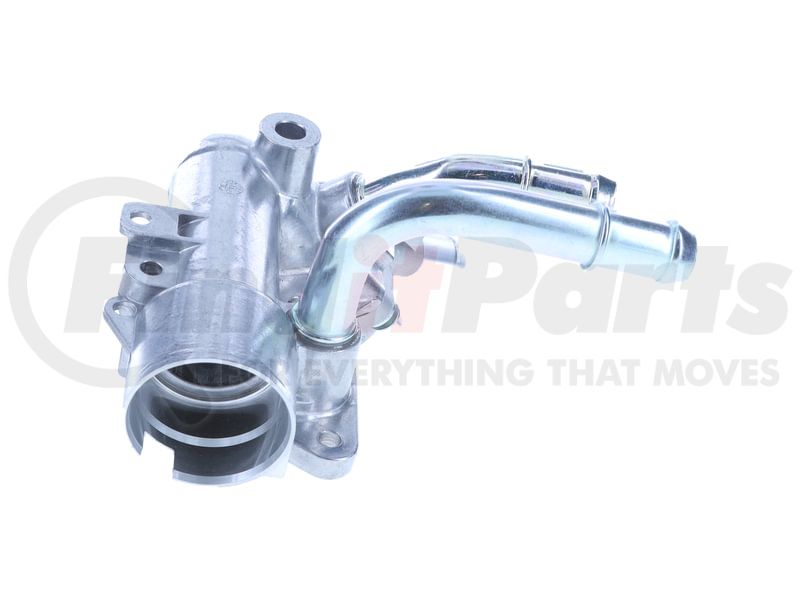

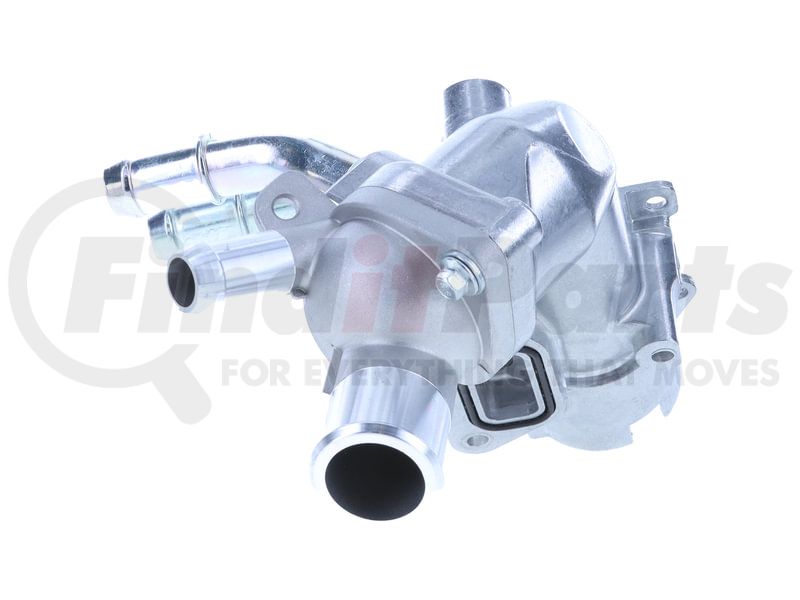

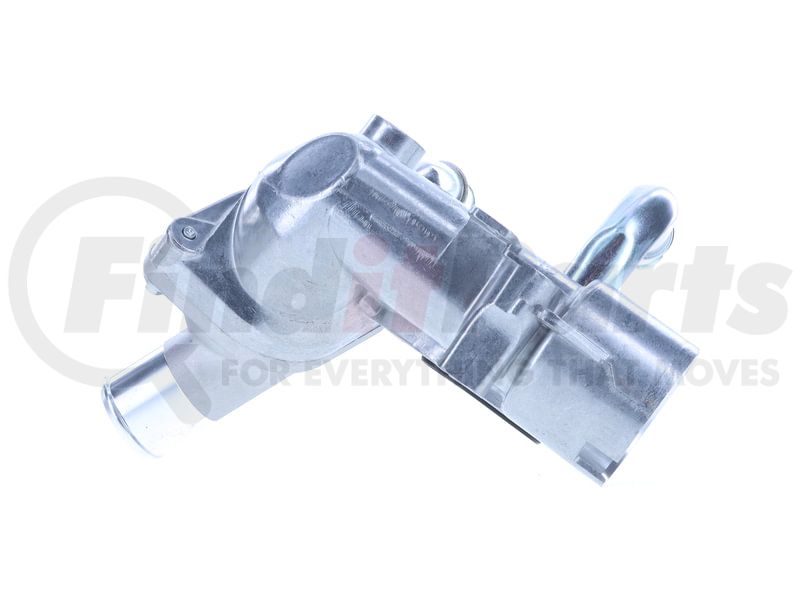

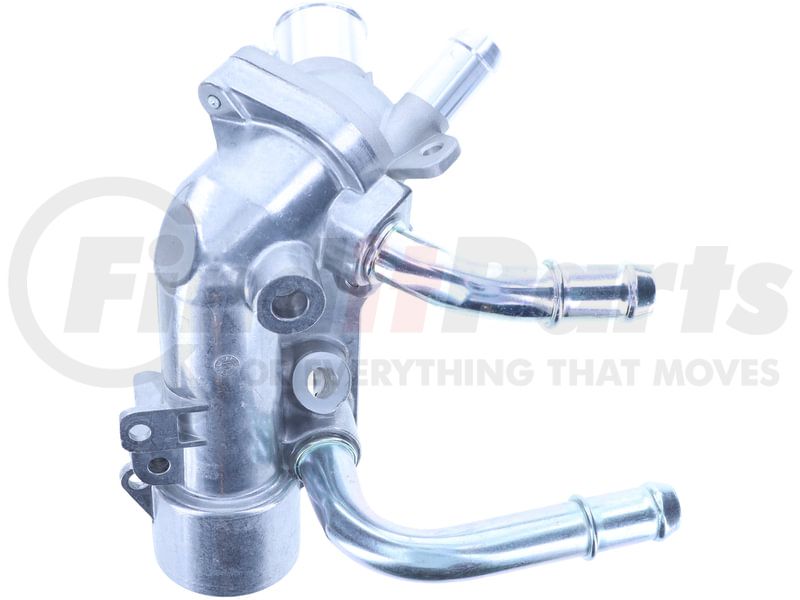

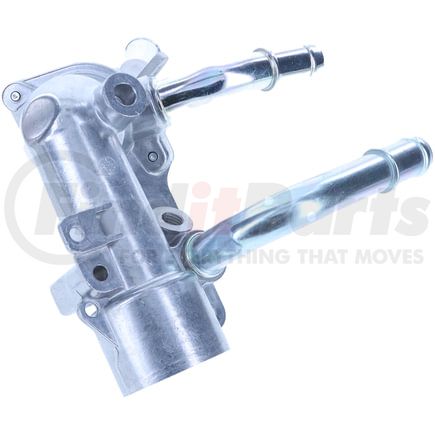

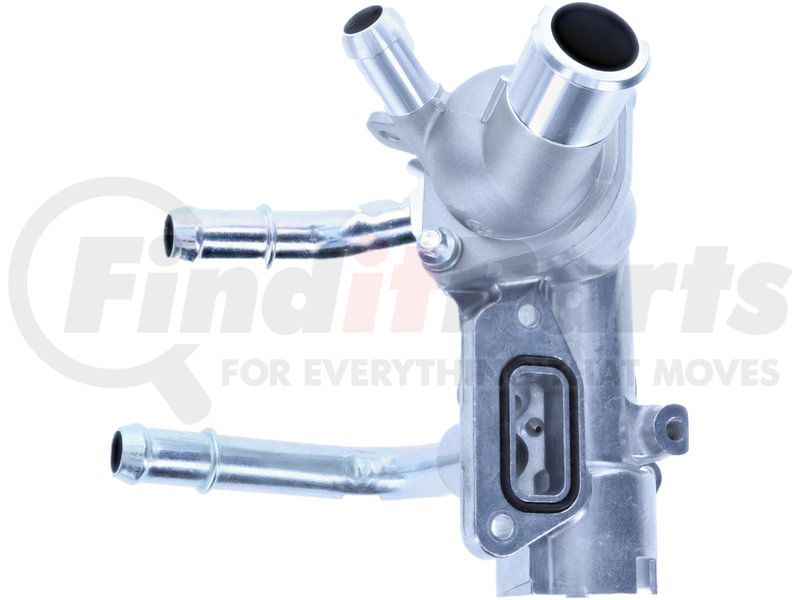

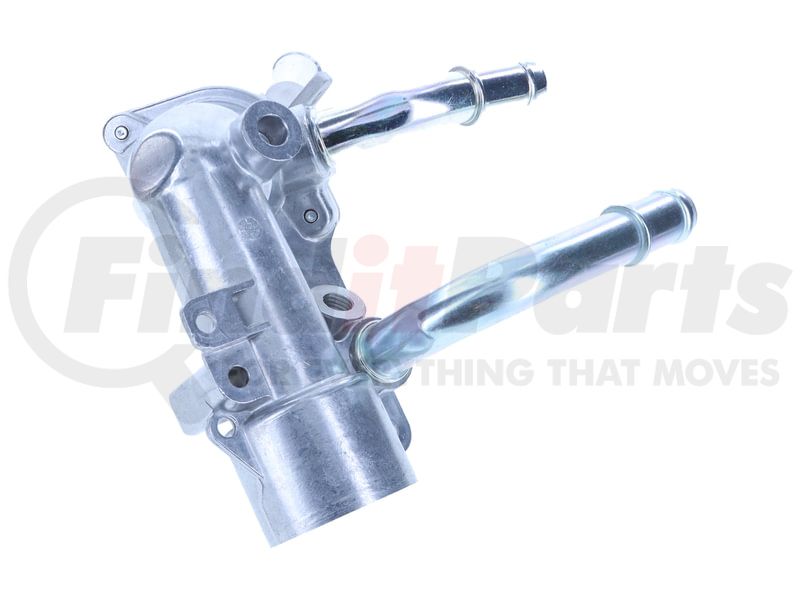

(888) 312-8812 Login SignupMOTORAD TA2009 Thermostat Housing Assembly - 180 Degrees
Tap to view 6 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MOTORAD TA2009 Part Description
Manufacturer
Product Description
Thermostat Housing Assembly - 180 Degrees
Features & Benefits
- High grade stainless steel and copper construction
- Meets or exceeds OEM standards
- Consistent and precise response to cooling system needs
- Original equipment design for worry-free direct fit replacement
- 100% tested and calibrated
Thermostat Housing Assembly - 180 Degrees
MOTORAD TA2009 Specifications
Product Attributes
| Gasket/seal Preinstalled | Yes |
| Inlet Port Outside Diameter | N/A |
| Installation Tool Included | No |
| Meets or Exceeds Original Equipment Manufacture Specifications | Yes |
| Number Of Seals | 1 |
| Sensor Included | No |
| Terminal Type | N/A |
| Gasket/Seal Material | Rubber |
| Inlet Port Inside Diameter | N/A |
| Inlet Port Quantity | 0 |
| Jiggle Pin Included | No |
| Number Of Gaskets | 0 |
| Outlet Port Outside Diameter | 0.76, 0.76, 0.82, 1.43 in |
| Pulley Included | No |
| Terminal Quantity | 0 |
| Start to Open Temperature | 180 Deg. F |
| Material | Metal |
| Color | Plata |
| Inside Diameter | 0.56 IN |
| Mounting Hardware Included | No |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Bolt Hole Center To Bolt Hole Center | 2.49 IN |
| Gasket Type | O-Ring |
| Flange Length | 2.12 IN |
| Flange Thickness | 0.05 in |
| Flange Width | 2.12 IN |
| Outlet Port Quantity | 4 |
| Bleeder Hole | No |
| Inlet Quantity | 0 |
| Start to Open Temperature | 180 FA |
| Outlet Port Outside Diameter | 1.43 IN |
| Actuator Type | Mechanical |
| Gasket Or Seal Material | Rubber |
| Gasket or Seal Pre-Installed | Yes |
| Gasket Quantity | 0 |
| Height | 7.00 in |
| Seal Quantity | 1 |
| Terminal Quantity | 0 |
| Includes Sensor | No |
| Gasket Or Seal Required | Yes |
| Valve Type | Disk |
| Inside Diameter | 14.224 MM |
| Bolt Hole Center To Bolt Hole Center | 29.97 MM |
| Outlet Port Outside Diameter | 36.32 MM |
| Start to Open Temperature | 82.22 CE |
| Flange Length | 53.85 MM |
| Flange Thickness | 1.27 MM |
| Flange Width | 53.85 MM |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 9032100090 |
| Harmonized Tariff Code (HTS) | 9032100090 |
| UPC | 00055644996455 |
MOTORAD TA2009 Cross References
MOTORAD TA2009 Fits Vehicles
- Chevrolet Impala (2014)
- Buick Verano (2012-2017)
- Chevrolet Captiva Sport (2012-2015)
- Chevrolet Equinox (2011)
- Buick Regal (2011-2017)
- Buick LaCrosse (2010-2016)
- Saturn Sky (2008-2010)
- Pontiac Solstice (2008-2009)
- Pontiac G6 (2008-2010)
- Pontiac G5 (2008-2010)
- Chevrolet Malibu (2008-2014)
- Chevrolet HHR (2008-2011)
- Chevrolet Cobalt (2008-2010)
- Saturn Aura (2007-2009)
- Saturn Vue (2007-2010)
MOTORAD TA2009 Customer Reviews
No reviews yet
Be the first to review this product!
MOTORAD TA2009 Manufacturer Information
Established in 1958, MotoRad® specializes in designing and manufacturing advanced engine and thermal solutions for automotive OE and aftermarket applications. They offer a comprehensive catalog that includes thermostats, mass airflow sensors, solenoids, ignition coils, cam and crank sensors, oil, fuel, and coolant caps, and other related components. Motorad products are made to comply with OE standards down to the smallest detail, ensuring a seamless fit and reliable performance every time. This dedication to precision engineering and quality led to Motorad earning prestigious awards, including the General Motors Supplier Quality Excellence Award, the Automotive Aftermarket Product Expo Award, ACPN Gold Award, and many more.
MOTORAD TA2009 Questions & Answers
No questions yet
Be the first to ask a question about this product!
