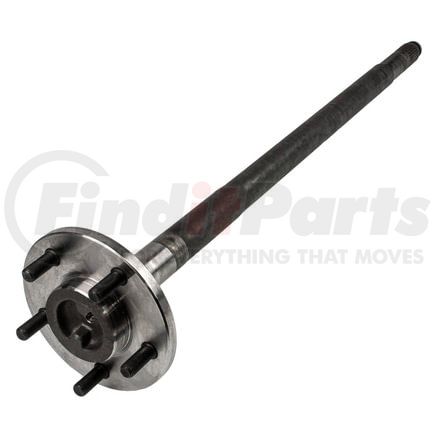

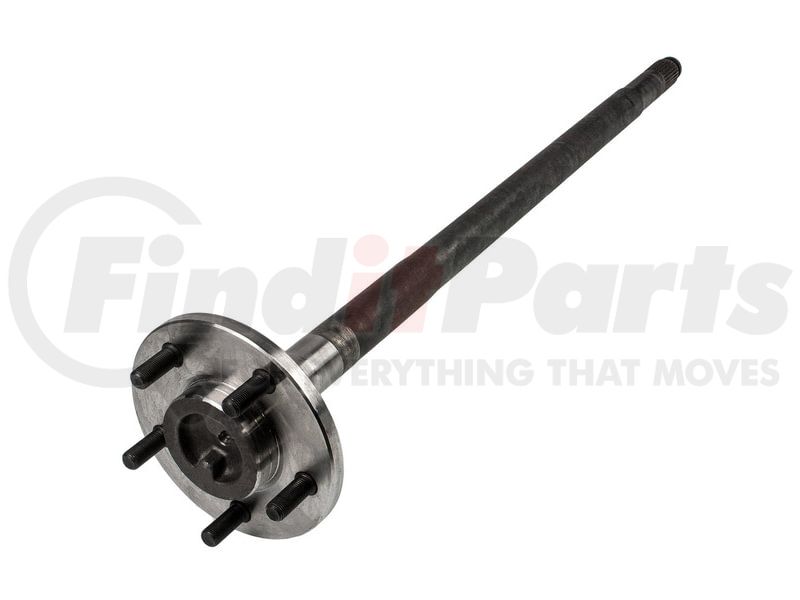

(888) 312-8812 Login SignupSPICER 74789-1X Dana 35 Axle Shaft, Passenger Side (RH), 29.72 in. Length, 27 Spline
$33649
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
SPICER 74789-1X Part Description
Manufacturer
Product Description
Axle Shaft - DANA 35; Rear - With ABS
Features & Benefits
- Genuine OE quality. Tested and proven.
- Engineered for consistent quality and durability
- Precision manufacturing processes
- Heat-treated for optimal hardness and durability
DANA 35 RH AXLE SHAFT 29.72 27
SPICER 74789-1X Specifications
Product Attributes
| Axle Model | DANA 35 |
| Material | Steel |
| ABS/Non-ABS | ABS |
| Length (In) | 29.730 IN |
| Location | RH |
| Spline Count | 27 Inboard |
| Axle Spline Count | 27 Inboard |
| Axle Cover Bolt Hole Qty | 10 |
| Axle Length (In) | 29.730 IN |
| Bearing Pilot Diameter (In) | 1.401 IN |
| Bolt Pattern | 5 X 4.50 |
| Brake Pilot Diameter (In) | 2.831 IN |
| Includes Tone | N |
| Wheel Stud Hole Diameter (In) | 0.609 IN |
| Cover Bolt Quantity | 10 |
| Axle Type | Complete Assembly |
| Quantity | 1 |
| ABS Sensor Ring Included | Yes |
| ABS Sensor Ring Installed | Y |
| Axle Shaft Included | Y |
| Bearing Included | N |
| Full-Floating Or Semi-Floating | Semi-Floating |
| Inner Axle Included | Y |
| Number Of Wheel Lugs | 5 |
| Outer Axle Included | Y |
| Retainer Ring Included | N |
| Seal Included | N |
| Seal Kit Included | N |
| U-Joint Included | N |
| Wheel Bearing Included | N |
| Wheel Bolt Prep Kit Included | N |
| Wheel Nuts Included | N |
| Wheel Studs Included | Y |
| Axle Length (Mm) | 755.142 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00023913133825 |
