(888) 312-8812 Login SignupSPICER 2-4-533 DL-EY-SR-1310-1.2500-KEY.3120-
MSRP: $77.68
$6649
Save $11.19
Limited availability at this price!
In Stock
Get it by Tuesday, Mar 17
SPICER 2-4-533 Part Description
Manufacturer
Product Description

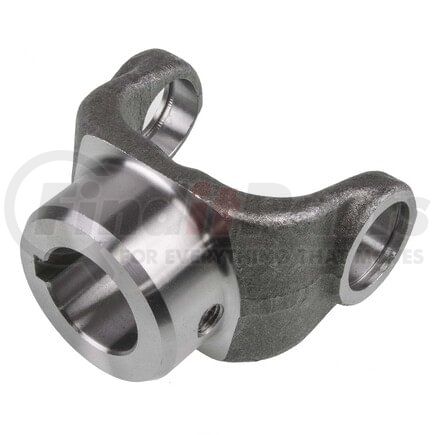

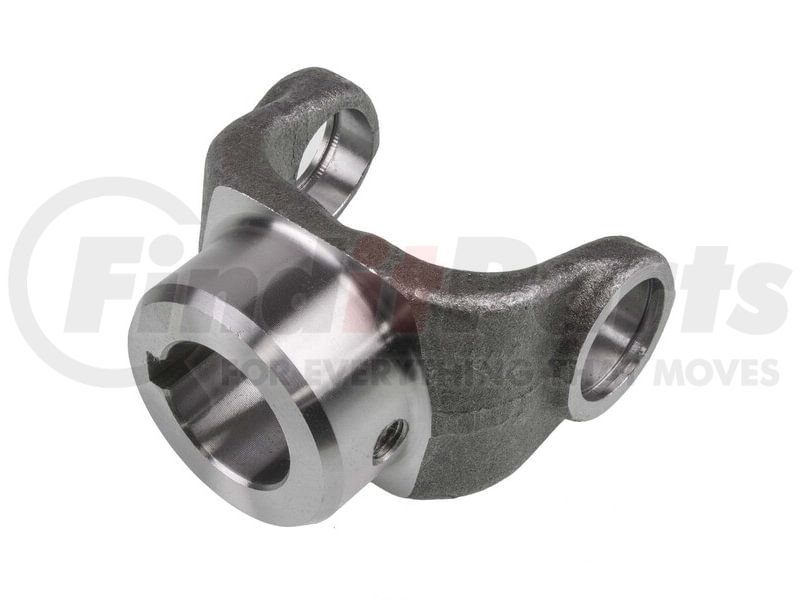

1310 Series End Yoke
Features & Benefits
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
DL-EY-SR-1310-1.2500-KEY.3120-
SPICER 2-4-533 Specifications
Product Attributes
| Series | 1310 |
| Material | Steel |
| Type | Straight Round Hole |
| Hole Diameter (In) P | 1.250 |
| Hub Diameter R | 2.125 |
| Involute Spline | N |
| Outside Yoke Dimension (in) E | 3.469 |
| Yoke Bearing Dimension (in) D | 1.062 |
| Yoke Style | SR |
| Keyway Location W | 12 |
| Sae Keyway Width (In) X | 0.312 |
| Set Screw Location W | 6 |
| C/l To End Hub S | 2.562 |
| Joint Angle #1 | 17 |
| Set Screw Hole Diameter (In) | 0.375 |
| Hole Diameter - Max | 1.251 |
| Hole Diameter - Min | 1.250 |
| Keyway Width - Max | 0.3155 |
| Keyway Width - Min | 0.3135 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913228804 |
| VMRS Code | 024001003 |
SPICER 2-4-533 Cross References
| Brand | Part Number |
|---|---|
| Baer Brake Systems | 2520-00492-4304 |
| Daimler Truck North America | 2 4 533, SP 2 4 533, SP 2 4 533HP |
| Dana Commercial Vehicle Service Parts | 2104-24533 |
| Freightliner | 2 4 533, SP 2 4 533, SP 2 4 533HP |
| GMB | 2511397 |
| Hyster | 278083 |
| International Harvester (IHC) | 100599, 1662827C1, 24533, D24533, E24533, ZJU24533 |
| Komatsu | VJ9660 |
| MOOG | 1397 |
| MOOG Chassis Products | 1397 |
| Mack | 2104-24533 |
| McNeilus | 12DS1 |
| Meritor | 131N4533 |
| NACCO | 278083 |
| NEAPCO | N2-4-533 |
| Navistar | 100599, 1662827C1, 24533, D24533, DS24533, E24533, ZJU24533 |
| Neapco OE Series | N2-4-533 |
| Paccar Parts | 2-4-533 |
| Peabody Myers | 10-61145 |
| Peterbilt | 12DS1, 12-DS-1 |
| Pierce | 12DS1 |
| Precision | 1397 |
| Rockwell International | 131N-4-533 |
| Terex | 12404-22 |
| UAP | 2-4-533 |
| Volvo | 2104-24533, 30006-5034, SHP24533, SP 24533 |
| WORLD AMERICAN | 2-4-533R |
