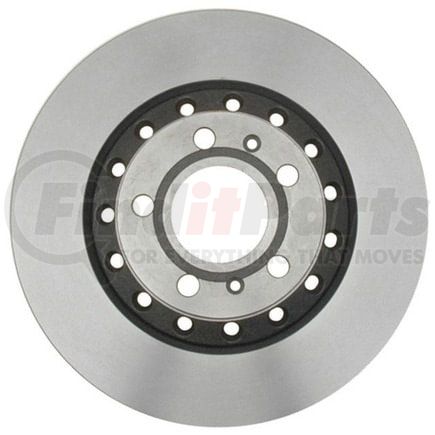

RAYBESTOS 980517 Raybestos Specialty - Street Performance Brake Rotor

$144.49

Limited availability at this price!

1 Day Lead Time

Get it by Thursday, Mar 19
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

RAYBESTOS 980517 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Street Performance Brake Rotor

Application Summary

2010-2005 Audi A8 Quattro Rear, 2006-2004 Volkswagen Phaeton Rear

Features & Benefits

  • Application Specific Enhanced Iron
  • Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Cooling Vanes
  • The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
  • Application Specific Coating
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
  • Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
  • Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
  • Turned Finish
  • Turned finish minimizes noise and improves responsiveness for smoother stops.
  • S-Groove Slot
  • Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
  • Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.

RAYBESTOS 980517 Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.677 IN
Center Hole Diameter 68 MM
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 0.787 IN
Discard Thickness 20 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 4.409 IN
Mounting Bolt Hole Circle Diameter 112 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 0.863 IN
Nominal Thickness 21.9 MM
Outside Diameter 12.198 IN
Outside Diameter 309.85 MM
Overall Height 1.659 IN
Overall Height 42.15 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) IT
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00829352461211

RAYBESTOS 980517 Cross References

BrandPart Number
829352461211, 120.33102
AUDI4E0615601K
AUTOZONE34288, 34288DG
BRAKEBEST14010047, 980517, 980517R, 980517RGS
BREMBO09.C137.11
CENTRIC125.33102
Centric Parts120.33102, 121.33102, 125.33102
DURA CORPBR34329, BR901212
DuraGoBR901212
NEOTEK106069GF
NEWTEK AUTOMOTIVE34329
Newtek Automotive USA34329
PROMAX14-34329
PRONTOBR901212
Qualis34288
UAP34329, R33109
VAICOV1080099
WAGNERBD180098
WAGNER BRAKEBD180098

RAYBESTOS 980517 Fits Vehicles

  • Audi A8 Quattro (2004-2010)
  • Volkswagen Phaeton (2004-2006)
