RAYBESTOS 980309 Part Description
Manufacturer
Product Description

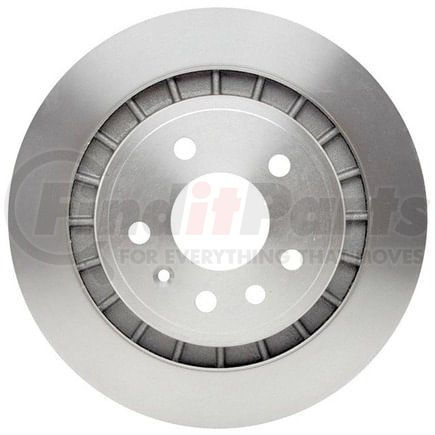

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2009-2002 Saab 9-5 Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980309 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.579 IN |
| Center Hole Diameter | 65.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.709 IN |
| Discard Thickness | 18 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Circle Diameter | 110 MM |
| Mounting Bolt Hole Diameter | 4.331 IN |
| Mounting Bolt Hole Diameter | 110 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20 MM |
| Outside Diameter | 11.801 IN |
| Outside Diameter | 299.75 MM |
| Overall Height | 2.72 IN |
| Overall Height | 69.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | IT |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352294000 |
RAYBESTOS 980309 Cross References
| Brand | Part Number |
|---|---|
| 829352294000, 120.38015 | |
| ADVANCE AUTO PARTS | 200402, YH200402, YH200402C, YH200402P |
| ATE BRAKE PRODUCTS | 420196, SP20196 |
| AUTOXTRA | AX901040 |
| AUTOZONE | 42428, 45428DG |
| BENDIX | PRT5936 |
| BOSCH | 45011427 |
| BRAKEBEST | 45011427, 980309, 980309RGS |
| BREMBO | 25810 |
| CENTRIC | 120.38015, 121.38015, 125.38015, 125.38015CRY, 126.38015CSL, 126.38015CSR, 126.38015SL, 126.38015SR, 127.38015L, 127.38015R, 128.38015L, 128.38015R, 320.38015H |
| Centric Parts | 120.38015, 121.38015, 125.38015, 125.38015CRY, 126.38015CSL, 126.38015CSR, 126.38015SL, 126.38015SR, 127.38015L, 127.38015R, 128.38015L, 128.38015R, 320.38015H |
| DURA CORP | BR34263, BR901040 |
| DuraGo | 901040, BR901040 |
| MIGHTY DISTRIBUTING SYSTEM | 34263 |
| NEWTEK AUTOMOTIVE | 34263 |
| Newtek Automotive USA | 34263 |
| PILENGA | V207 |
| PROMAX | 14-34263 |
| PRONTO | BR901040 |
| Qualis | 45428 |
| SAAB | 12763593, 5232756 |
| UAP | 34263 |
| WAGNER | BD126146 |
| WAGNER BRAKE | BD126146 |
| WINHERE | 6620430 |
RAYBESTOS 980309 Fits Vehicles
- Saab 9-5 (2002-2010)
