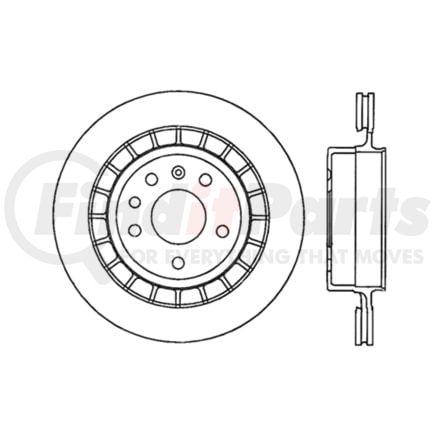

CENTRIC 120.38015 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.38015 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Kgs | 6.850 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 15.080 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 2 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 18.000 MM |
| Discard Thickness | 0.709 IN |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20.000 MM |
| Hat Finish | Painted |
| Overall Height | 2.724 IN |
| Overall Height | 69.200 MM |
| Outside Diameter | 11.772 IN |
| Outside Diameter | 299.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 160.000 MM |
| Nominal Drum Diameter | 6.299 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.579 IN |
| Center Hole Diameter | 65.500 MM |
| Mounting Bolt Hole Circle Diameter | 110.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.555 IN |
| Stud/Lug Hole Diameter | 14.100 MM |
CENTRIC 120.38015 Cross References
CENTRIC 120.38015 Fits Vehicles
- Saab 9-5 (2002-2009)
