(888) 312-8812 Login SignupRAYBESTOS 980378 Raybestos Specialty - Street Performance Brake Rotor
$10849
Limited availability at this price!
In Stock
Get it by Tuesday, Mar 10

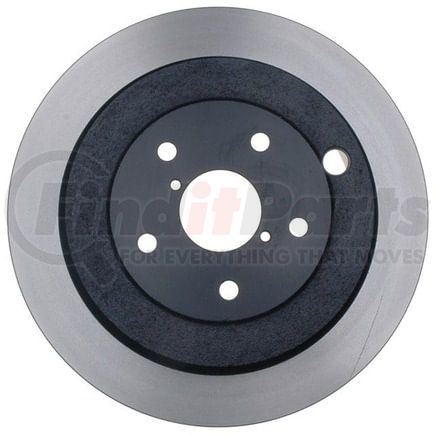

RAYBESTOS 980378 Part Description
Manufacturer
Product Description
Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2014-2008 Subaru Tribeca Rear, 2007-2006 Subaru B9 Tribeca Rear, 2012 Subaru WRX Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980378 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.283 IN |
| Center Hole Diameter | 58 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.63 IN |
| Discard Thickness | 16 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 114.3 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.704 IN |
| Nominal Thickness | 17.9 MM |
| Outside Diameter | 12.589 IN |
| Outside Diameter | 319.75 MM |
| Overall Height | 2.654 IN |
| Overall Height | 67.4 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352498309 |
RAYBESTOS 980378 Cross References
| Brand | Part Number |
|---|---|
| ASH85858, 829352498309 | |
| ADVANCE AUTO PARTS | 145795, YH145794, YH145794C, YH145794P, YH145795 |
| AUTOXTRA | AX900486 |
| AUTOZONE | 44571, 44571DG |
| BENDIX | PRT5794 |
| BOSCH | 48011205, 48011479 |
| BRAKEBEST | 48011205, 48011479, 980378FZN, 980378R, 980378RGS, 980378 |
| CENTRIC | 120.47028, 120.47028CRY, 121.47028, 126.47028SL, 126.47028SR, 127.47028CL, 127.47028CR, 127.47028L, 127.47028R, 320.47028 |
| Casting Numbers | 326332 |
| Centric Parts | 120.47028, 120.47028CRY, 121.47028, 126.47028SL, 126.47028SR, 127.47028CL, 127.47028CR, 127.47028L, 127.47028R, 320.47028 |
| DURA CORP | BR31415, BR900486 |
| DuraGo | 900486, BR900486 |
| MAGMA PRODUCTS | PSR525032 |
| NEOTEK | 106410GF |
| NEWTEK AUTOMOTIVE | 31415 |
| Newtek Automotive USA | 31415 |
| POWERSTOP | JBR1368EVC |
| PROMAX | 14-31415 |
| PRONTO | BR900486 |
| Qualis | 44571 |
| SUBARU | 26700XA00A |
| TRW | 4929 |
| UAP | 31415 |
| Ultra Brake | SU-704 |
| WABCO | PS126495 |
| WABCO - Archived | PS126495 |
| WAGNER | BD126495E, BD126495 |
| WAGNER BRAKE | BD126495 |
| WINHERE | 6620669 |
| WORLDPAC | 1407-75687 |
| Wagner Brake | BD126495E |
RAYBESTOS 980378 Fits Vehicles
- Subaru WRX (2012)
- Subaru Tribeca (2008-2014)
- Subaru B9 Tribeca (2006-2007)
