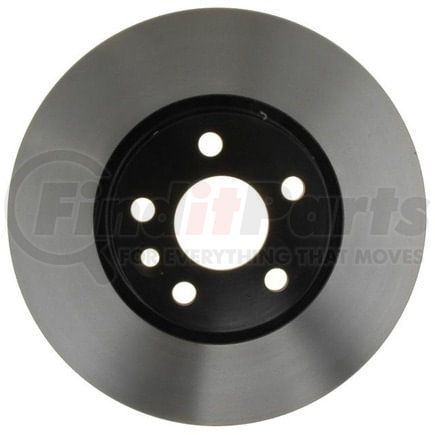

RAYBESTOS 980725 Raybestos Specialty - Truck Brake Rotor

$115.49

Limited availability at this price!

1 Day Lead Time

Get it by Thursday, Mar 19
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

RAYBESTOS 980725 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Truck Brake Rotor

Application Summary

2018-2014,2012-2011 Volvo S60 Front, 2016-2008 Volvo XC70 Front, 2016-2007 Volvo S80 Front, 2015-2012 Land Rover Range Rover Evoque Front, 2018-2015 Volvo V60 Front, 2010-2008 Volvo V70 Front

Features & Benefits

  • OE Fit, Form, and Function
  • Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
  • Cooling Vanes
  • We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
  • Coating
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • SAE Standard for Tensile Strength
  • Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
  • Turned Finish
  • A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box

RAYBESTOS 980725 Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.502 IN
Center Hole Diameter 63.55 MM
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 1.024 IN
Discard Thickness 26 MM
Harmonize Code 8708.30.5030
Inside Diameter 6.75 IN
Inside Diameter 171.45 MM
Mounting Bolt Hole Circle Diameter 4.252 IN
Mounting Bolt Hole Circle Diameter 108 MM
Mounting Bolt Hole Diameter 0.621 IN
Mounting Bolt Hole Diameter 15.75 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 1.103 IN
Nominal Thickness 28 MM
Outside Diameter 11.814 IN
Outside Diameter 300.1 MM
Overall Height 2.056 IN
Overall Height 52.2 MM
Salability Restrictions No
Stud/Lug Hole Quantity 5
Surface Type Smooth
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00829352744154

RAYBESTOS 980725 Cross References

RAYBESTOS 980725 Fits Vehicles

  • Volvo V60 (2015-2018)
  • Volvo S60 (2011-2012, 2014-2018)
  • Volvo V70 (2008-2010)
  • Volvo XC70 (2008-2016)
  • Volvo S80 (2007-2016)
  • Land Rover Range Rover Evoque (2012-2015)
