(888) 312-8812 Login SignupRAYBESTOS 980087 Raybestos Specialty - Truck Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980087 Part Description
Manufacturer
Product Description

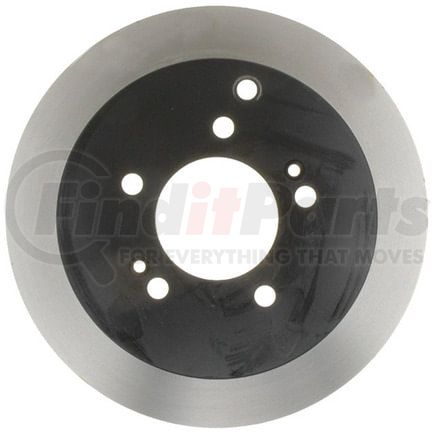

Raybestos Specialty - Truck Brake Rotor
Application Summary
2015-2005 Hyundai Tucson Rear, 2016-2005 Kia Sportage Rear, 2006-2001 Hyundai Santa Fe Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980087 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.99 IN |
| Center Hole Diameter | 75.95 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.331 IN |
| Discard Thickness | 8.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.491 IN |
| Mounting Bolt Hole Diameter | 12.45 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10 MM |
| Outside Diameter | 11.181 IN |
| Outside Diameter | 284 MM |
| Overall Height | 2.4 IN |
| Overall Height | 60.95 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352226292 |
RAYBESTOS 980087 Cross References
RAYBESTOS 980087 Fits Vehicles
- Kia Sportage (2005-2016)
- Hyundai Tucson (2005-2015)
- Hyundai Santa Fe (2001-2006)
