CENTRIC 120.51012 Part Description
Manufacturer
Product Description

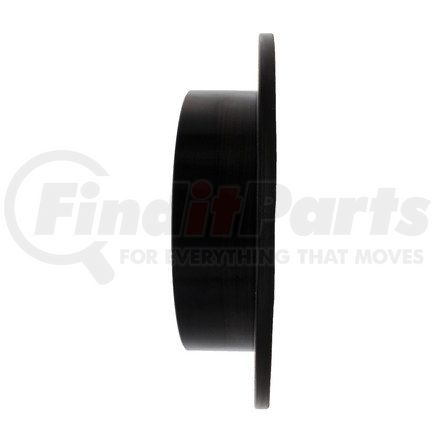

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.51012 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 4.770 |
| Disc Mounting [cntrc] | Floating / DIH |
| Max Pb Drum Dia [cntrc] In | 7.520 |
| Product Grade [cntrc] | Premium |
| Max Pb Drum Dia [cntrc] Mm | 191.000 |
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] Lbs | 10.500 |
| Discard Thickness | 0.331 IN |
| Discard Thickness | 8.400 MM |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10.000 MM |
| Hat Finish | Painted |
| Overall Height | 61.000 MM |
| Overall Height | 2.402 IN |
| Outside Diameter | 283.800 MM |
| Outside Diameter | 11.173 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 190.000 MM |
| Nominal Drum Diameter | 7.480 IN |
| Bearings Included | No |
| Center Hole Diameter | 76.000 MM |
| Center Hole Diameter | 2.992 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.500 MM |
| Stud/Lug Hole Diameter | 0.492 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890075110 |
CENTRIC 120.51012 Cross References
| Brand | Part Number |
|---|---|
| 980087, BD126201 | |
| ADVICS | R6R235U |
| N/A | 0832707, BD126201, BD126201E, E125-56-017, BR3133602, 6482140, 31336, 31336G, 584113A300, 145534, 880092, DF4287, JBR958, E12556017, 31336HC, 120.51012, YH145534, 25910, 2031336, DDF1493, 18A1662A, 90003044 |
| NEOTEK | 106925GF |
| Neotek Premium Drums and Rotors | 106925GF |
| PRONTO | BR3133602 |
| RAYBESTOS | 980087, 980087FZN, 980087R, 980087R2 |
| Raybestos Brakes | 980087FZN, 980087R, 980087 |
| WAGNER | BD180460, BD126201E, BD126201 |
CENTRIC 120.51012 Fits Vehicles
- Hyundai Santa Fe (2001-2006)
- Hyundai Tucson (2005-2015)
- Kia Sportage (2005-2016)
