RAYBESTOS 780614R Part Description
Manufacturer
Product Description

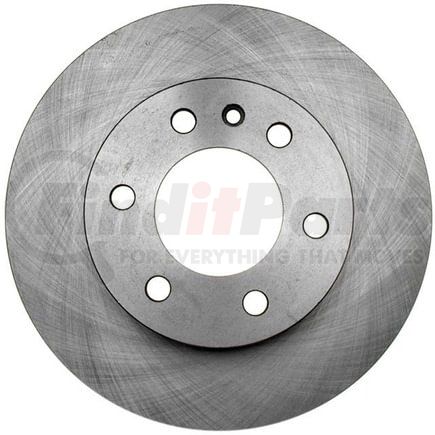

Raybestos R-Line Brake Rotor
Application Summary
2023-2010 Mercedes-Benz Sprinter 2500 Front, 2023-2010 Mercedes-Benz Sprinter 3500 Front, 2020-2007 Freightliner Sprinter 2500 Front, 2009-2007 Dodge Sprinter 2500 Front, 2018-2007 Freightliner Sprinter 3500 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 780614R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.35 IN |
| Center Hole Diameter | 85.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.984 IN |
| Discard Thickness | 25 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.118 IN |
| Mounting Bolt Hole Circle Diameter | 130 MM |
| Mounting Bolt Hole Diameter | 0.595 IN |
| Mounting Bolt Hole Diameter | 15.1 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 11.799 IN |
| Outside Diameter | 299.7 MM |
| Overall Height | 2.7 IN |
| Overall Height | 68.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352621233 |
RAYBESTOS 780614R Cross References
RAYBESTOS 780614R Fits Vehicles
- Freightliner Sprinter 3500XD (2018-2021)
- Freightliner Sprinter 2500 (2007-2021)
- Freightliner Sprinter 3500 (2007-2021)
- Mercedes-Benz Sprinter 3500XD (2018-2024)
- Mercedes-Benz Sprinter 4500 (2019-2023)
- Mercedes-Benz Sprinter 1500 (2019-2023)
- Volkswagen Crafter (2016-2017)
- Mercedes-Benz Sprinter 2500 (2010-2024)
- Mercedes-Benz Sprinter 3500 (2010-2024)
- Volkswagen Crafter Van (2008-2017)
- Dodge Sprinter 3500 (2007-2009)
- Dodge Sprinter 2500 (2007-2009)
