(888) 312-8812 Login SignupRAYBESTOS 96679R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96679R Part Description
Manufacturer
Product Description

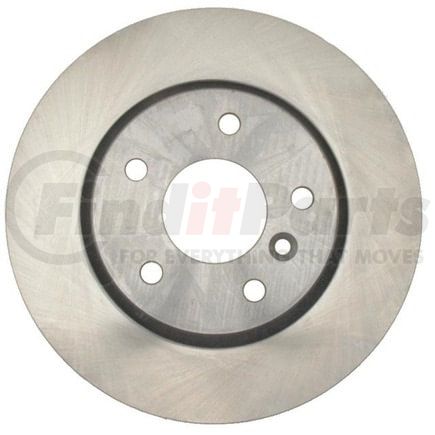

Raybestos R-Line Brake Rotor
Application Summary
2002-1995 Land Rover Range Rover Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96679R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.763 IN |
| Center Hole Diameter | 70.2 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.866 IN |
| Discard Thickness | 22 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.551 IN |
| Mounting Bolt Hole Diameter | 14 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.985 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 11.7 IN |
| Outside Diameter | 297.2 MM |
| Overall Height | 2.545 IN |
| Overall Height | 64.65 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352466513 |
RAYBESTOS 96679R Cross References
RAYBESTOS 96679R Fits Vehicles
- Land Rover Range Rover (1995-2002)
