CENTRIC 120.22003 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

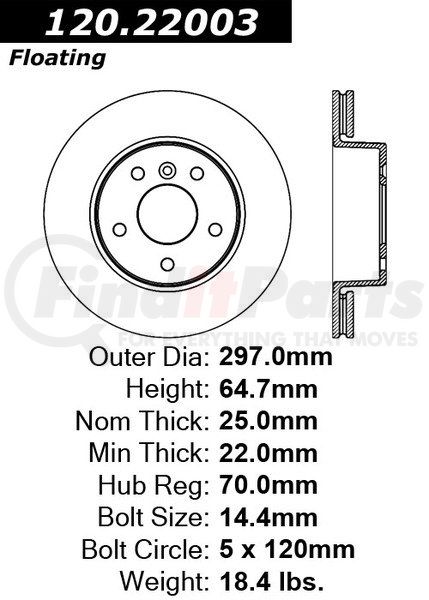

CENTRIC 120.22003 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 1 |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 18.400 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 8.360 |
| Discard Thickness | 0.866 IN |
| Discard Thickness | 22.000 MM |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25.000 MM |
| Hat Finish | Painted |
| Overall Height | 64.700 MM |
| Overall Height | 2.547 IN |
| Outside Diameter | 11.681 IN |
| Outside Diameter | 296.700 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 70.000 MM |
| Center Hole Diameter | 2.756 IN |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.563 IN |
| Stud/Lug Hole Diameter | 14.300 MM |
CENTRIC 120.22003 Cross References
CENTRIC 120.22003 Fits Vehicles
- Land Rover Range Rover (1995-2002)
