RAYBESTOS 96759R Part Description
Manufacturer
Product Description

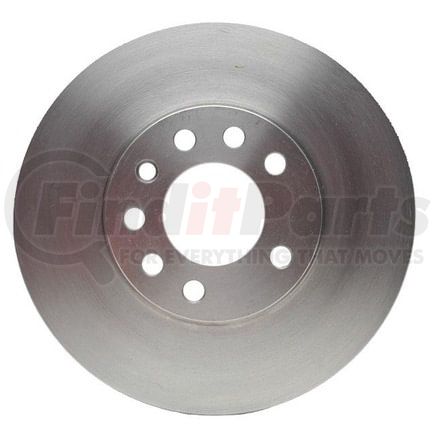

Raybestos R-Line Brake Rotor
Application Summary
2003-2001 Saturn L200 Front, 2009-1999 Saab 9-5 Front, 2003-1999 Saab 9-3 Front, 2005-2001 Saturn L300 Front, 2000 Saturn LS1 Front, 2002-2001 Saturn L100 Front, 2003-2001 Saturn LW200 Front, 1998-1997 Saab 900 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96759R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.76 IN |
| Center Hole Diameter | 70.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.866 IN |
| Discard Thickness | 22 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Circle Diameter | 110 MM |
| Mounting Bolt Hole Diameter | 0.557 IN |
| Mounting Bolt Hole Diameter | 14.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 11.335 IN |
| Outside Diameter | 287.9 MM |
| Overall Height | 1.66 IN |
| Overall Height | 42.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352372234 |
RAYBESTOS 96759R Cross References
RAYBESTOS 96759R Fits Vehicles
- Saturn LS2 (2000)
- Saturn LW2 (2000)
- Saturn LS (2000)
- Saturn LW1 (2000)
- Saturn LS1 (2000)
- Saab 9-5 (1999-2009)
- Saab 9-3 (1999-2003)
- Saab 900 (1997-1998)
- Saturn LW300 (2001-2003)
- Saturn LW200 (2001-2003)
- Saturn L300 (2001-2005)
- Saturn L100 (2001-2002)
- Saturn L200 (2001-2003)
