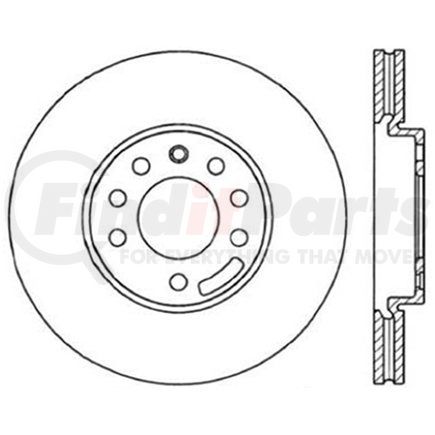

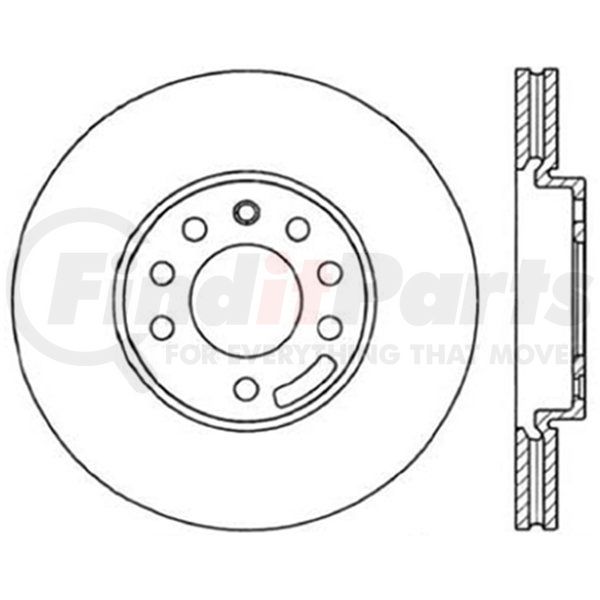

(888) 312-8812 Login SignupCENTRIC 320.38012H Centric GCX Rotor with Full Coating and High Carbon Content
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.38012H Part Description
Manufacturer
Product Description
Centric GCX Rotor with Full Coating and High Carbon Content
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron & high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.38012H Specifications
Product Attributes
| Misc Holes [cntrc] | 3 |
| Vane Style [cntrc] | Curved |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 7.440 |
| Weight [cntrc] Lbs | 16.360 |
| Discard Thickness | 22.000 MM |
| Discard Thickness | 0.866 IN |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25.000 MM |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 42.200 MM |
| Overall Height | 1.661 IN |
| Outside Diameter | 11.339 IN |
| Outside Diameter | 288.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.756 IN |
| Center Hole Diameter | 70.000 MM |
| Mounting Bolt Hole Circle Diameter | 110.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.250 MM |
| Stud/Lug Hole Diameter | 0.561 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590388350 |
CENTRIC 320.38012H Cross References
CENTRIC 320.38012H Fits Vehicles
- Saturn LW2 (2000)
- Saturn LW1 (2000)
- Saturn LS2 (2000)
- Saturn LS1 (2000)
- Saturn LS (2000)
- Saab 9-5 (1999-2006)
- Saab 9-3 (1999-2003)
- Saab 900 (1997-1998)
- Saturn LW300 (2001-2003)
- Saturn LW200 (2001-2003)
- Saturn L300 (2001-2005)
- Saturn L200 (2001-2003)
- Saturn L100 (2001-2002)
