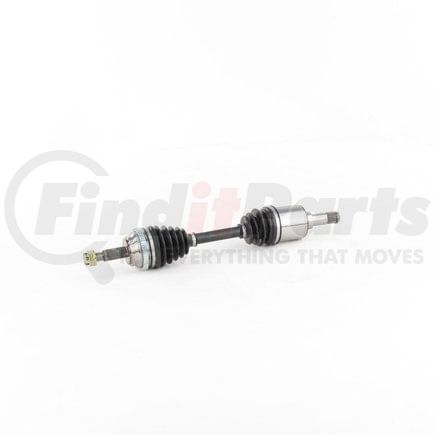

(888) 312-8812 Login SignupTRAKMOTIVE CH-8016 CV Axle Shaft
Tap to view 1 more
MSRP: $87.49
$5799
Save $29.50
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 18
TRAKMOTIVE CH-8016 Part Description
TRAKMOTIVE CH-8016 Specifications
Product Attributes
| ABS Ring Tooth Count | 56 |
| ABS Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .86 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.67 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.33 |
| Axle Nut Length (mm) | 35 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M20x1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 23 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.07 |
| Overall Compressed Length (mm) | 586 |
| Axle Nut Socket Size | 30 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
| California Proposition 65 Required | N |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084010162 |
TRAKMOTIVE CH-8016 Cross References
| Brand | Part Number |
|---|---|
| ARC | 80-2250 |
| American Remanufactured | 40-18947S |
| CARDONE Reman | 60-3106, 66-3106 |
| Car Components Technologies (CCT) | 8757 |
| Carquest | 410111, 800120 |
| Carquest Premium AC | NCV12523 |
| Drive Tech America | DC-8947A |
| EMPI | 80-1943 |
| Fenwick | CV3079 |
| GSP AUTO PARTS NORTH AMERICA INC | NCV12523 |
| Mevotech | CV2161 |
| N/A | 410111, NCV12523, 72537, 139016, 800120, 80-2250, 66-3106, 92250, MX-18947S |
| ODM | CH-8-8534A |
| OEM Part Number | 3555557174, 4641113, 4641115, 4668701, 4668701AB, 4668801AB, 4670253, 4670255, 4670355, 4670601, 4670605, 4670605AB, 5003489AA |
| Prestige Autotech | 2811, 2813 |
| TrakMotive | CH-8016 |
| USA Industries | 708601, AX-31559 |
TRAKMOTIVE CH-8016 Fits Vehicles
- Plymouth Neon (1995-1997)
- Dodge Neon (1995-1997)
