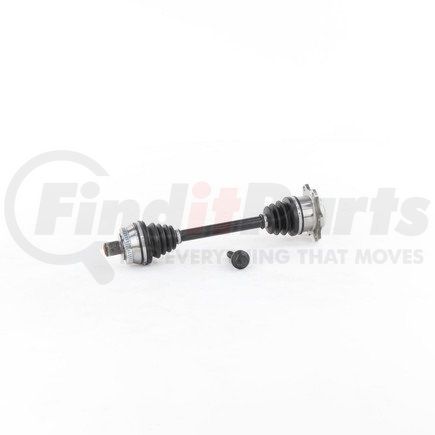

(888) 312-8812 Login SignupTRAKMOTIVE AD-8098 CV Axle Shaft
Tap to view 1 more
MSRP: $108.99
$7199
Save $37.00
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
TRAKMOTIVE AD-8098 Part Description
TRAKMOTIVE AD-8098 Specifications
Product Attributes
| ABS Ring Tooth Count | 45 |
| ABS Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Head Type | N/A |
| Axle Nut Height (in) | N/A |
| Axle Nut Height (mm) | N/A |
| Axle Nut Hex Size (in) | N/A |
| Axle Nut Hex Size (mm) | N/A |
| Axle Nut Included | No |
| Axle Nut Length (in) | N/A |
| Axle Nut Length (mm) | N/A |
| Axle Nut Locking Type | N/A |
| Axle Nut Thread Size | N/A |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 19.76 |
| Overall Compressed Length (mm) | 502 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
| California Proposition 65 Required | N |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084091987 |
TRAKMOTIVE AD-8098 Cross References
| Brand | Part Number |
|---|---|
| ARC | 80-5053 |
| Altrom Group | 652717 |
| American Remanufactured | 40-17259S |
| CARDONE Reman | 66-7053 |
| Car Components Technologies (CCT) | 7100 |
| Carquest | 411767 |
| Carquest Premium AC | NCV23548 |
| Diversified Shafts Solutions | 2341N, 2413N |
| Drive Tech America | VW-7259A |
| EMPI | 80-9072 |
| GSP AUTO PARTS NORTH AMERICA INC | NCV23548 |
| IMC | 40704032, 40704067 |
| Mevotech | CV1479 |
| N/A | 411767, NCV23548, 77918, 109098, 66-7053, MX-17259S, 80-5053, 95053 |
| ODM | AD-8-8022A |
| OEM Part Number | 8D0407272AK, 8D0407272AL, 8D0407272BC, 8D0407272ED, 8D0407452GX, 8D0407452JX, 8D0407452RX |
| ProTech | AD10519 |
| TrakMotive | AD-8098 |
TRAKMOTIVE AD-8098 Fits Vehicles
- Volkswagen Passat (2000-2005)
- Audi A4 Quattro (1996-2001)
