FRAM DL8530 Part Description

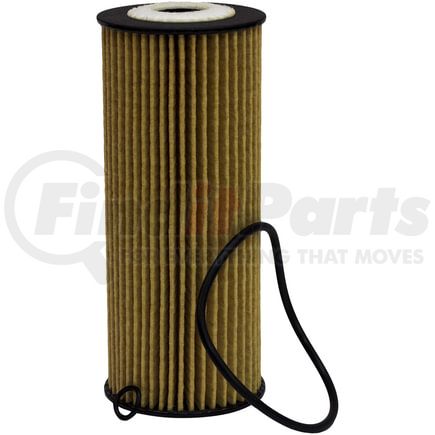

Cartridge Oil Filter
FRAM DL8530 Specifications
Product Attributes
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Media Material | Cellulose/Synthetic Blend |
| Filter Type | Cartridge |
| Grade | Advanced |
| Grade Type | Regular |
| Height | 6.024 IN |
| Inside Diameter Bottom | 0.828 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| Non Slip Grip | No |
| O-ring (1) Inside Diameter | 0.394 IN |
| O-ring (1) Outside Diameter | 0.573 IN |
| O-ring (1) Thickness | 0.179 IN |
| O-ring Inside Diameter | 2.780 IN |
| O-ring Outside Diameter | 2.918 IN |
| O-ring Thickness | 0.138 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.5 in |
| Outer Diameter Top | 2.5 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.828 in |
| Torque Nut | No |
| Washable | No |
Additional Information
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| UPC | 00009100537317 |
| UNSPSC | 15121501 |
FRAM DL8530 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | PF1707 |
| Auto Extra | 61857210 |
| Baldwin | P7308 |
| Bosch | 1457429619, 72208 |
| Carquest | 84210, R84210 |
| Carquest Premium Filters | 84210 |
| Casite Filters | CF529 |
| Certified | CCH8530 |
| Champ | P856 |
| Champion | COC8530 |
| Champion Filters | COC8530 |
| Coopers | CH8530ECO |
| Defense Filters | DL8530 |
| Driveworks | DW-5308 |
| FRAM | CH8530, TG8530, DL8530 |
| FRAM Drive | FD8530 |
| FVP | G7210 |
| Factory Motor Parts | G7210 |
| Firestone | P856 |
| Fleetguard | LF16176 |
| Ford | 1100696 |
| Group 7 | V5308 |
| Hastings | LF529, LF529F |
| Hengst | E154HD48 |
| Installer Edge | AL8530 |
| LUBER-FINER | P856 |
| Linde | 9830621 |
| Mahle | OX143DECO |
| Mann-Filter | HU726/1X, HU726/2X |
| MicroGard | MGL57210, MGL8530 |
| Mighty Distributing System | M856 |
| Mobil | L45308 |
| MotoMaster | MCH8530 |
| NAPA | 7210 |
| Parts Master | 67210 |
| Parts Plus | P856 |
| Pennzoil | PZ-64, PZ64 |
| Pentius | PCB8530 |
| Performax | PO-64 |
| Premium Guard | PG5308 |
| Promotive | PH5308 |
| Pronto | PO-5308 |
| PureZone | 8-57210 |
| Purflux | L291 |
| Purolator | L45308 |
| Quaker State | QS8530 |
| Qualitee International | HL8530 |
| STP | S8530 |
| STP Filters | S8530, S8530XL |
| Service Champ | CF5308 |
| Service Pro | M5308 |
| Shell - Archived | L45308 |
| Silverline | 27210 |
| Tecnocar | OP204 |
| VIPER | 8530 |
| Valvoline | VO-71, VO71 |
| Volkswagen | 038 115 466, 074 115 562 |
| Warner Filters | P856 |
| Wix | 57210 |
FRAM DL8530 Fits Vehicles
- Suzuki Aerio (2002)
- Volkswagen Passat (2004-2005)
- Volkswagen Jetta (1999-2005)
- Volkswagen Golf (1999-2006)
- Volkswagen Beetle (1998-2006)
FRAM DL8530 Customer Reviews
No reviews yet
Be the first to review this product!
FRAM DL8530 Manufacturer Information
FRAM® is all-set to "Filter out the Nonsense." With an origin that dates back to 1932, this brand has been globally recognized as the filter authority for its world-class filtering solutions that offer maximum engine protection, unparalleled filtering performance, and superior dirt-holding capacity. FRAM provides the industry with first-rate air filters, oil filters, heavy-duty commercial filters that help keep engines running efficiently, the way a well-filtered machine should. Among FRAM's popular products are the FRAM Extra Guard air filter, Fresh Breeze cabin air filter, Titanium oil filter, heavy-duty hydraulic, coolant, or fuel filters, and many others. Whether you are a fleet manager, a seasoned mechanic, or an experienced do-it-yourselfer, FRAM will provide you with filters that deliver efficiency, quality, reliability, performance, and durability at competitive prices.
