(888) 312-8812 Login SignupCENTRIC 120.39031 Premium Brake Rotor
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.39031 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

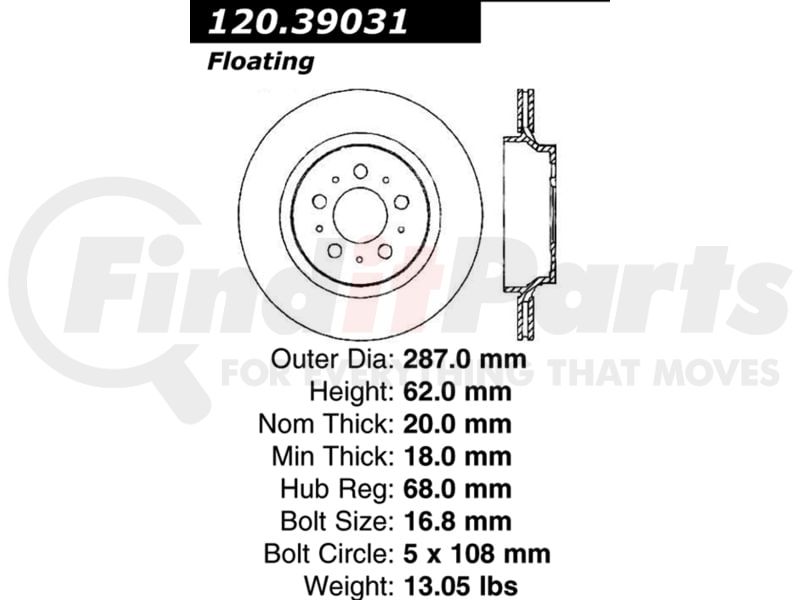

CENTRIC 120.39031 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 5 |
| Weight [cntrc] Kgs | 5.930 |
| Weight [cntrc] Lbs | 13.050 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 0.709 IN |
| Discard Thickness | 18.000 MM |
| Nominal Thickness | 20.000 MM |
| Nominal Thickness | 0.787 IN |
| Hat Finish | Painted |
| Overall Height | 62.000 MM |
| Overall Height | 2.441 IN |
| Outside Diameter | 11.299 IN |
| Outside Diameter | 287.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 178.000 MM |
| Nominal Drum Diameter | 7.008 IN |
| Bearings Included | No |
| Center Hole Diameter | 68.000 MM |
| Center Hole Diameter | 2.677 IN |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.800 MM |
| Stud/Lug Hole Diameter | 0.661 IN |
CENTRIC 120.39031 Cross References
| Brand | Part Number |
|---|---|
| 829352675625 | |
| RAYBESTOS | 980553, 980553R |
| WAGNER | BD180064 |
CENTRIC 120.39031 Fits Vehicles
- Volvo V70 (2000)
