(888) 312-8812 Login SignupRAYBESTOS 980553R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980553R Part Description
Manufacturer
Product Description

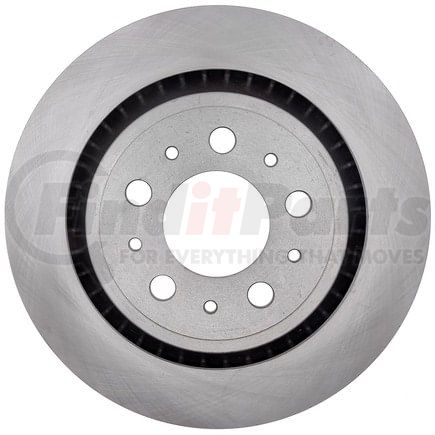

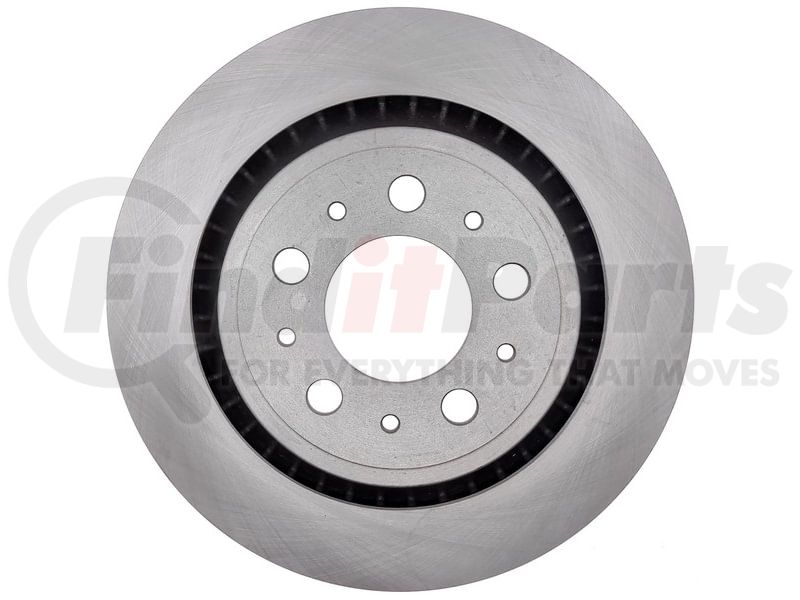

Raybestos R-Line Brake Rotor
Application Summary
2000 Volvo V70 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980553R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.709 IN |
| Discard Thickness | 18 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.02 IN |
| Inside Diameter | 203.7 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108 MM |
| Mounting Bolt Hole Diameter | 4.252 IN |
| Mounting Bolt Hole Diameter | 108 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20 MM |
| Outside Diameter | 11.339 IN |
| Outside Diameter | 288 MM |
| Overall Height | 2.441 IN |
| Overall Height | 62 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213372465 |
RAYBESTOS 980553R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH141941P |
| BrakeBest | 980553, 980553RGS |
| CENTRIC | 121.39031 |
| Centric Parts | 120.39031, 121.39031, 125.39031, 126.39031CSL, 126.39031CSR, 126.39031SL, 126.39031SR, 127.39031L, 127.39031R |
| Dura Corp | BR34350 |
| DuraGo | BR34350 |
| Qualis | 45694 |
| Volvo | 8617026 |
| Wagner Brake | BD180064 |
RAYBESTOS 980553R Fits Vehicles
- Volvo V70 (2000)
