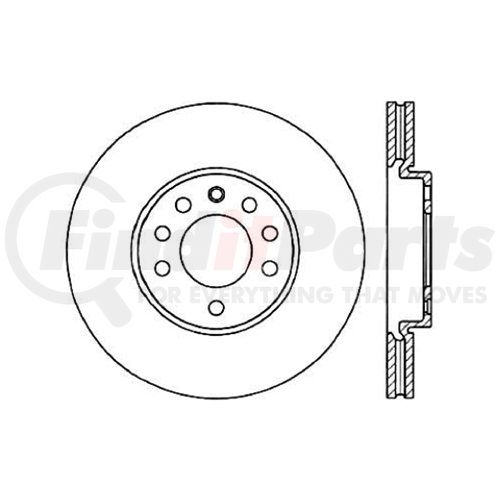

(888) 312-8812 Login SignupCENTRIC 120.38016 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.38016 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

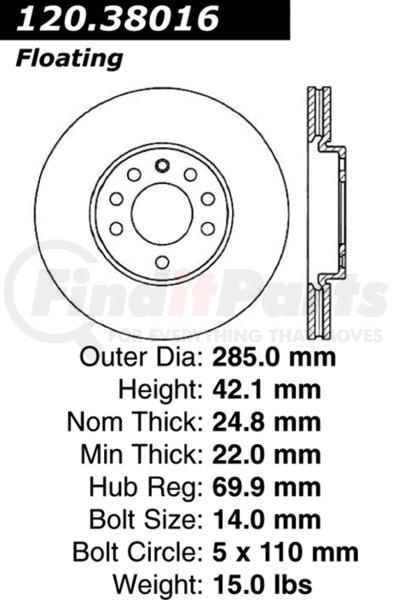

CENTRIC 120.38016 Specifications
Product Attributes
| Misc Holes [cntrc] | 3 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 15.000 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 6.820 |
| Discard Thickness | 22.000 MM |
| Discard Thickness | 0.866 IN |
| Nominal Thickness | 0.976 IN |
| Nominal Thickness | 24.800 MM |
| Hat Finish | Painted |
| Overall Height | 42.100 MM |
| Overall Height | 1.657 IN |
| Outside Diameter | 285.000 MM |
| Outside Diameter | 11.220 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.752 IN |
| Center Hole Diameter | 69.900 MM |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Circle Diameter | 110.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.000 MM |
| Stud/Lug Hole Diameter | 0.551 IN |
CENTRIC 120.38016 Cross References
CENTRIC 120.38016 Fits Vehicles
- Saab 9-3X (2010)
- Saab 9-3 (2003-2011)
