CENTRIC 120.35072 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

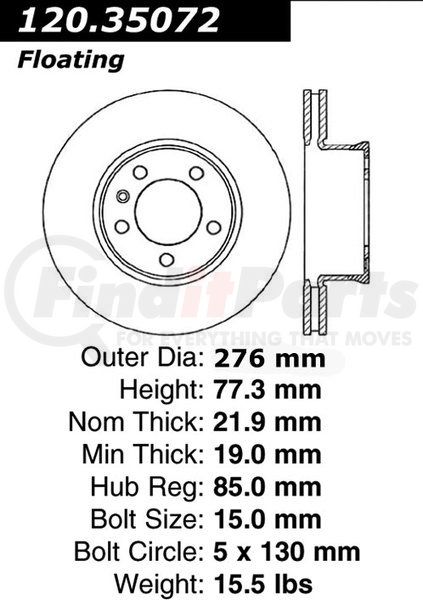

CENTRIC 120.35072 Specifications
Product Attributes
| Misc Holes [cntrc] | 1 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Pillar |
| Weight [cntrc] Lbs | 15.500 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 7.050 |
| Discard Thickness | 19.000 MM |
| Discard Thickness | 0.748 IN |
| Nominal Thickness | 0.862 IN |
| Nominal Thickness | 21.900 MM |
| Hat Finish | Painted |
| Overall Height | 3.043 IN |
| Overall Height | 77.300 MM |
| Outside Diameter | 276.000 MM |
| Outside Diameter | 10.866 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.346 IN |
| Center Hole Diameter | 85.000 MM |
| Mounting Bolt Hole Circle Diameter | 130.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.118 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.591 IN |
| Stud/Lug Hole Diameter | 15.000 MM |
CENTRIC 120.35072 Cross References
CENTRIC 120.35072 Fits Vehicles
- Freightliner Sprinter 2500 (2002, 2004-2006)
- Freightliner Sprinter 3500 (2002-2005)
- Dodge Sprinter 3500 (2003-2005)
- Dodge Sprinter 2500 (2003-2006)
