FRAM TG10066 Part Description
Manufacturer
Product Description

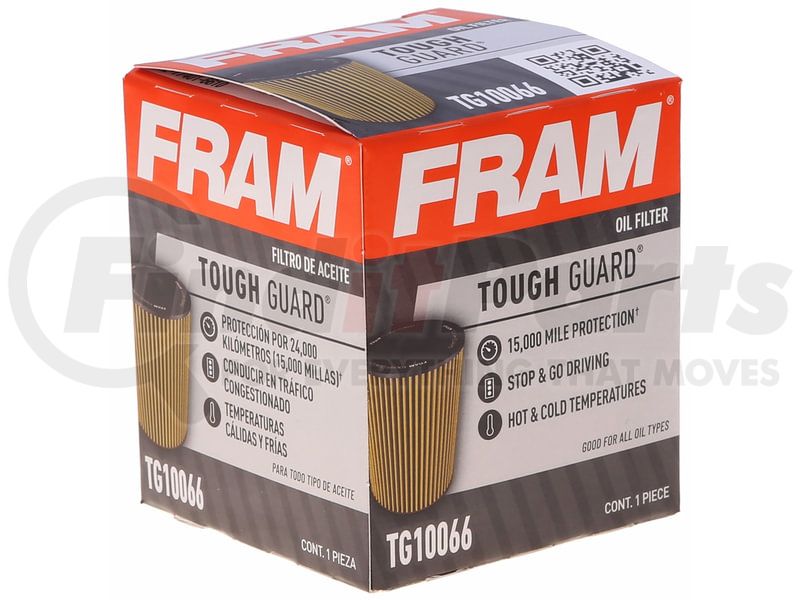

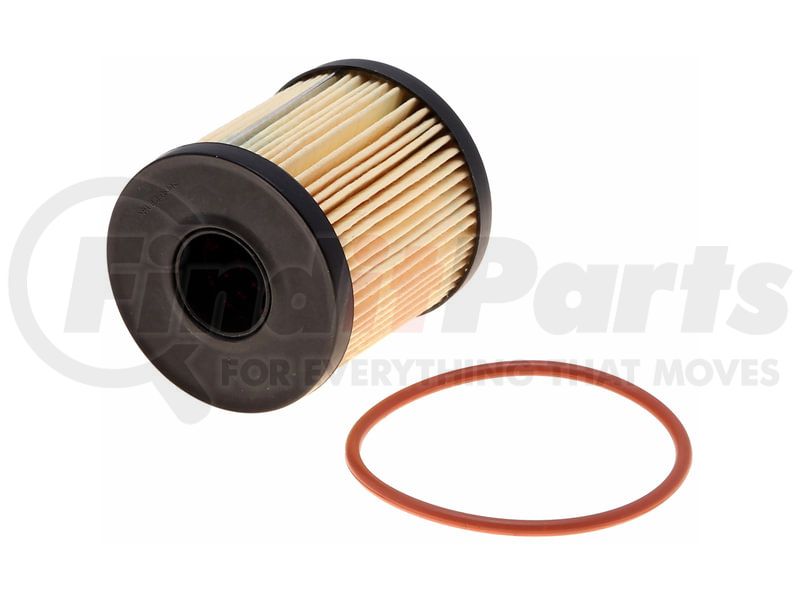

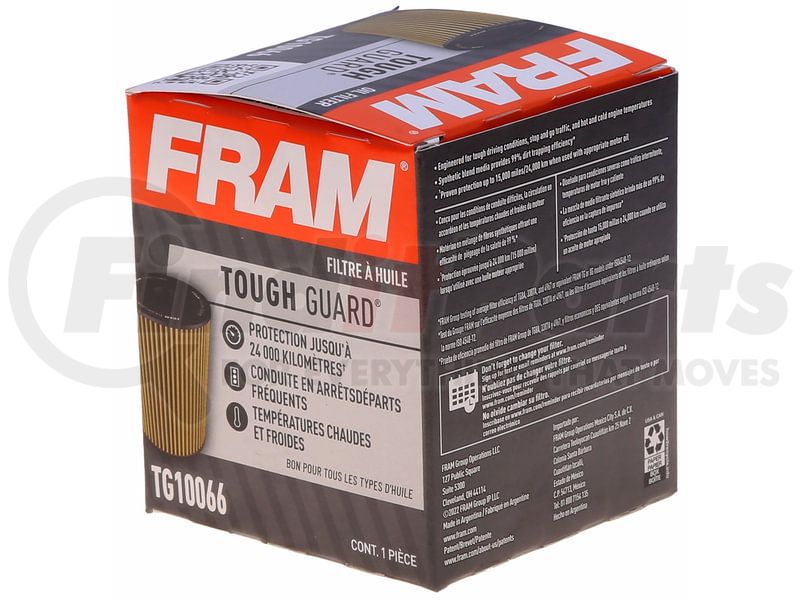

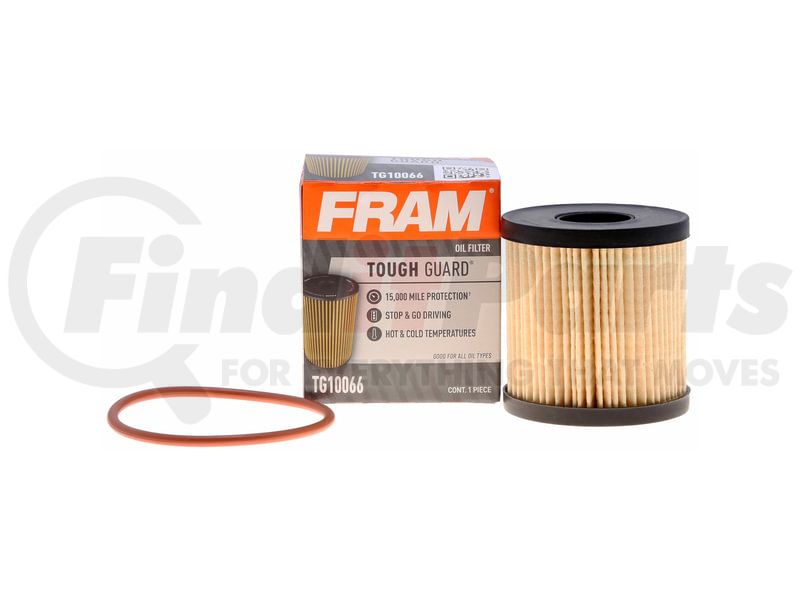

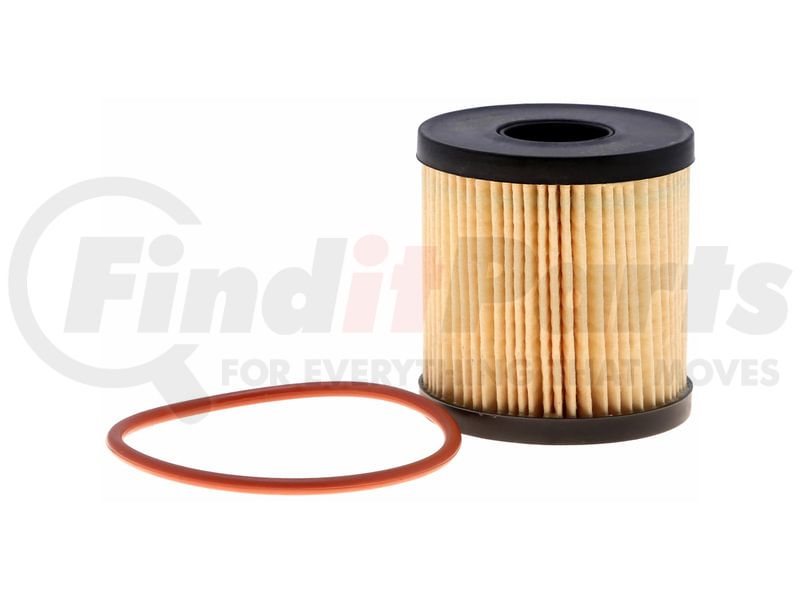

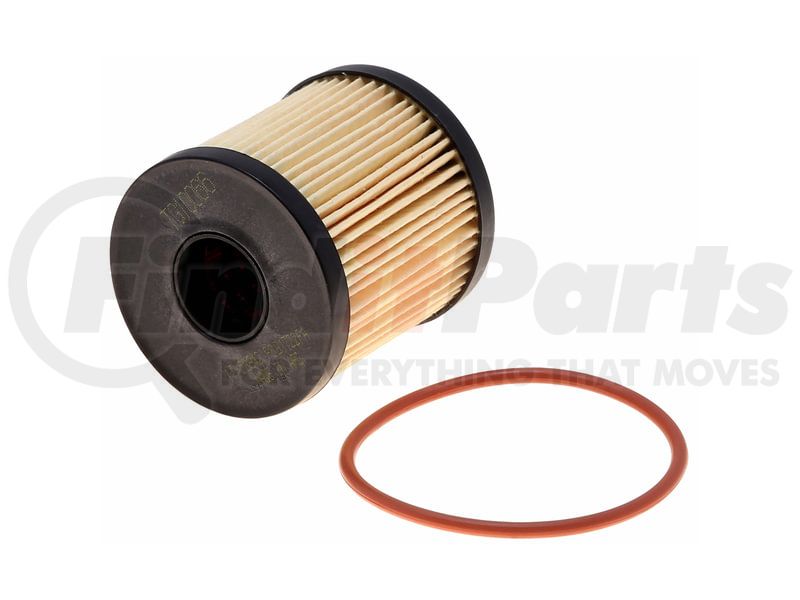

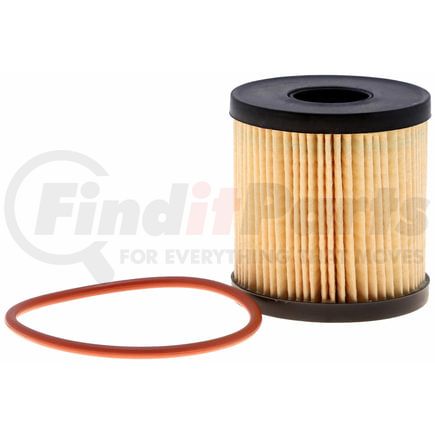

FRAM, TG10066, Oil Filter
Features & Benefits
- Proven protection for up to 15,000 miles (24,000 kilometers)
- Engineered for tough driving conditions, stop and go traffic, and hot and cold temperatures
- Synthetic blend media provides 99% dirt holding capacity
- Designed for use with synthetic or conventional motor oils
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines
Cartridge Oil Filter
FRAM TG10066 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 2.738 IN |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Type | Cartridge |
| Housing Color | NA |
| Non Slip Grip | No |
| Torque Nut | No |
| Top Inside Diameter | 0.937 IN |
| Outer Diameter Bottom | 2.561 IN |
| Grade | Premium |
| Grade Type | Premium |
| Inside Diameter Bottom | 0.937 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 2.857 IN |
| O-ring Outside Diameter | 3.011 IN |
| O-ring Thickness | 0.157 IN |
| O-Rings Included | Yes |
| Outer Diameter Top | 2.561 in |
| Replacable Filter | Yes |
| Reusable | No |
| Washable | No |
| Washer Inside Diameter | 0.649 IN |
| Washer Outside Diameter | 0.858 IN |
| Washer Thickness | 0.059 IN |
| Grade Type | Premium |
| Bottom Inside Diameter | 0.937 IN |
| Outside Diameter Top | 2.561 IN |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | AR |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100571434 |
| UNSPSC | 15121501 |
FRAM TG10066 Cross References
| Brand | Part Number |
|---|---|
| BMW | 11 42 7 557 012, 11 42 7 622 446 |
| Baldwin | P7450 |
| Beck/Arnley | 041-0820 |
| Carquest | 84512, R84512 |
| Carquest Premium Filters | 84512 |
| Champ | P978 |
| Champion | COC10066 |
| Champion Filters | COC10066 |
| Citroen | 1109X4, 1109Z2 |
| ECOGARD | X5830 |
| FRAM | TG10066 |
| FRAM Drive | FD10066 |
| FRAM Extra Guard | CH10066 |
| FRAM Tough Guard | TG10066 |
| FRAM Ultra Synthetic | XG10066 |
| FVP | G7512 |
| Factory Motor Parts | G7512 |
| Firestone | P978 |
| Ford | 1303476, 3M5Q-6744-AA |
| Forecast | OF62 |
| Hastings | LF631 |
| Jaguar | C2S 29685 |
| LUBER-FINER | P978 |
| Land Rover | LR001247 |
| MAHLE | OX555 |
| Magneti Marelli | 1AMFL00023 |
| Mann-Filter | HU711/51X, HU711/5X |
| MicroGard | MGL57512 |
| Mobil | P978 |
| NAPA | 7512 |
| PUROLATOR | TL15830 |
| Parts Master | 67512 |
| Pennzoil | PZ183 |
| Performax | PO-183 |
| Peugeot | 1109X3, 1109Z1 |
| Premium Guard | PG5830 |
| PureZone | 8-57512 |
| Purflux | L358, L358A, L372 |
| Purolator | L15830 |
| STP | S10066 |
| STP Filters | S10066, S10066XL |
| Service Champ | CF5830 |
| Valvoline | VO-111 |
| Volvo | 30650798 |
| WIX FILTERS | 57512 |
| Warner | WP978 |
| Warner Filters | WP978 |
| Wix | 57512 |
FRAM TG10066 Fits Vehicles
- Suzuki Aerio (2002)
- Mini Cooper Paceman (2013-2016)
- Mini Cooper Countryman (2011-2016)
- Metropolitan Series B (1956-1957)
- Mini Cooper (2007-2015)
