(888) 312-8812 Login SignupMOTORAD 815-160 Integrated Housing Thermostat-160 Degrees w/ Seal
Tap to view 6 more
$5599
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 11
MOTORAD 815-160 Part Description
Manufacturer
Product Description

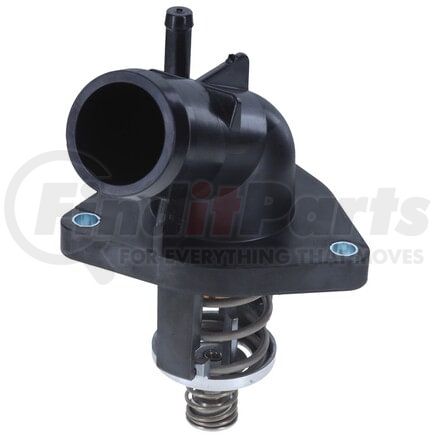

Integrated Housing Thermostat-160 Degrees w/ Seal
Features & Benefits
- High grade stainless steel and copper construction
- Meets or exceeds OEM standards
- Consistent and precise response to cooling system needs
- Original equipment design for worry-free direct fit replacement
- 100% tested and calibrated
1st To Market
MOTORAD 815-160 Specifications
Product Attributes
| Gasket/Seal Material | Rubber |
| Bolts Included | No |
| Gasket or Seal Included | Yes |
| Installation Tool Included | No |
| Material | Plastic, Stainless Steel, Copper |
| Number of Bolt Holes | 3 |
| Number Of Seals | 1 |
| Bolt Hole Quantity | 3 |
| Color | Black |
| Hardware Included | No |
| Jiggle Pin Included | No |
| Mounting Hardware Included | No |
| Number Of Outlet Ports | 2 |
| Outlet Diameter | 0.32 in, 1.34 in |
| Start to Open Temperature | 160 Deg. F |
| Flange Length | 3.38 IN |
| Mounting Hole Quantity | 3 |
| Gasket Type | O-Ring |
| Inlet Quantity | 1 |
| Inlet Inside Diameter | 2.07 IN |
| Start to Open Temperature | 160.0 FA |
| Outlet Port Outside Diameter | 44.45 MM |
| Outlet Port Outside Diameter | 1.75 IN |
| Terminal Quantity | 0 |
| Bolt Hole Center To Bolt Hole Center | 2.80 IN |
| Flange Thickness | 0.41 in |
| Flange Width | 3.40 IN |
| Outlet Port Quantity | 2 |
| Mounting Hole Diameter | 0.25 IN |
| Bleeder Hole | No |
| Actuator Type | Mechanical |
| Bypass Outside Diameter | 0.35 IN |
| Bypass Inside Diameter | 0.08 IN |
| Gasket Or Seal Material | Rubber |
| Seal Quantity | 1 |
| Gasket Or Seal Included | Yes |
| Material | Cobre |
| Includes Sensor | No |
| Bypass Hose Connection Type | Barbed |
| 10800 | 0.97 IN |
| Bypass Quantity | 1 |
| Inlet Hose Connection Type | Bolt On |
| MAP Controlled | No |
| 3663 | 1.23 IN |
| Grade Type | Standard Replacement |
| Mounting Hardware Included | No |
| Valve Type | Disk |
| Gasket Or Seal Required | Yes |
| Inside Diameter | 2.07 IN |
| Color | Negro |
| Inlet Outside Diameter | 2.61 IN |
| Outlet Hose Connection Type | Barbed |
| Outlet Port Inside Diameter | 1.07 IN |
| Start to Open Temperature | 71.11 CE |
| Bolt Hole Center To Bolt Hole Center | 71.12 MM |
| Inside Diameter | 52.58 MM |
| Inlet Inside Diameter | 52.58 MM |
| Flange Length | 85.85 MM |
| Flange Thickness | 10.41 MM |
| Flange Width | 86.36 MM |
| Mounting Hole Diameter | 6.35 MM |
| Inlet Outside Diameter | 66.29 MM |
| Outlet Port Inside Diameter | 27.18 MM |
| 3663 | 31.24 MM |
| 9814 | 8.89 MM |
| 9815 | 2.03 MM |
| 10800 | 24.64 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 9032100090 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | IL |
| Harmonized Tariff Code (HTS) | 9032100090 |
| UPC | 00055644910413 |
MOTORAD 815-160 Cross References
MOTORAD 815-160 Fits Vehicles
- Cadillac CT5 (2022-2023)
- Chevrolet Silverado 1500 LD (2019)
- GMC Sierra 1500 Limited (2019)
- Chevrolet Silverado 2500 (2008-2018)
- Chevrolet Camaro (2016-2023)
- Cadillac CTS (2016-2019)
- Chevrolet Suburban (2014-2020)
- Cadillac Escalade ESV (2015-2020)
- Cadillac Escalade (2015-2020)
- GMC Yukon XL (2015-2020)
- GMC Yukon (2015-2021)
- Chevrolet Tahoe (2015-2020)
- Chevrolet Cheyenne (2014)
- GMC Sierra 1500 (2014-2019)
- Chevrolet Silverado 1500 (2014-2018)
- Chevrolet Corvette (2014-2019)
