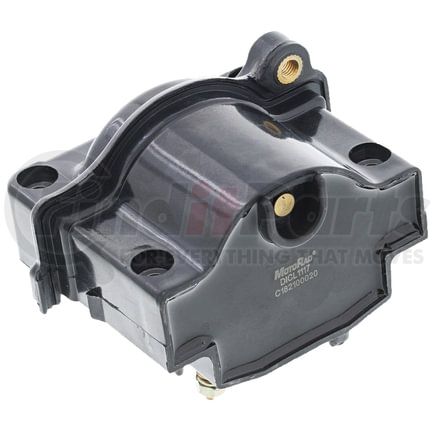

MOTORAD 3IC217 Part Description
Manufacturer
Product Description
Ignition Coil
Features & Benefits
- Primary and secondary windings made with ETP grade copper to provide superior temperature protection and voltage conductivity.
- Graphite-infused platinum connections resist corrosion and offer superior conductivity and durability.
- Heat resistant magnet produces max voltage output at all engine speeds.
- Preapplied dielectric grease for easy installation.
MOTORAD 3IC217 Specifications
Product Attributes
| Oil Filled | No |
| Hazardous Material | No |
| Oe Replacement | YES |
| Quantity Per Application | 6 |
| Primary Resistance | 1000-1800 Ohms |
| Connector Quantity | 1 |
| Secondary Resistance | 8500-14000 Ohms |
| Connector Gender | Male |
| Product Color | Black, White |
| Grade Type | Regular |
| Terminal Quantity | 2 |
| Requires External Resistor | Yes |
| Terminal Gender | Male |
| Voltage | 12 VDC |
| Terminal Type | Threaded |
| Mounting Bracket Included | No |
| Terminal Type | Threaded |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 5 |
| Terminal Quantity | 2 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Mounting Bracket Included | No |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8511300080 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8511300080 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | TX |
| UPC | 00055644688909 |
MOTORAD 3IC217 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | D582 |
| General Motors | 94840127, 94847392, 19017139 |
| Mighty Distributing System | 6534 |
| Motorad | 3IC217 |
| STANDARD IGNITION | UF-40 |
| Toyota | 9091902135, 9091902139, 9091902196 |
MOTORAD 3IC217 Fits Vehicles
- Toyota Van Wagon (1988)
- Toyota Van (1984-1989)
- Toyota Tercel (1983-1987, 1990)
- Toyota Corolla (1983-1992)
- Toyota Celica (1986-1993)
- Toyota Camry (1983-1991)
- Geo Prizm (1989-1992)
- Chevrolet Nova (1985-1988)
