REACH COOLING 41-633 Radiator

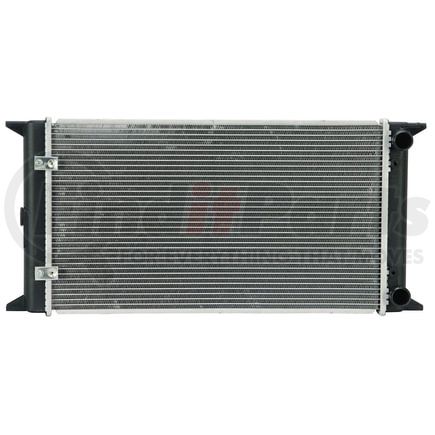

41-633 by REACH COOLING - Radiator
REACH COOLING
Tap to view 4 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-633 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Volkswagen:79-82 Rabbit/80 Rabbit Convertible/80-82 Rabbit Pickup

Features & Benefits

  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Folded fin edges increase stability and heat disbursement properties.
  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.

No Shipping Restriction

radiator, engine cooling, rad, car radiator, auto radiator, radiator cap

REACH COOLING 41-633 Specifications

Product Attributes

Core Height 21.25 IN
Outlet Diameter 1.25 IN
Outlet Header Width 39.7 MM
Engine Oil Cooler Included No
Core Thickness 31.8 MM
Inlet Header Length 311.2 MM
Outlet Header Length 12.25 IN
Outlet Location Bottom Right
Transmission Oil Cooler Included Yes
Inlet Header Width 1.562 IN
Transmission Oil Cooler Distance between Fittings 7.062 IN
Inlet Diameter 31.8 MM
Core Material Aluminum
Tank Material Aluminum
Radiator Cap Included Not Needed
Inlet Location Top Right
Core Width 298.5 MM
Core Row Quantity 2
Down Flow Or Cross Flow Type Cross Flow
Core Thickness 1.25 IN
Outlet Header Length 311.2 MM
Inlet Diameter 1.25 IN
Outlet Diameter 31.8 MM
Core Width 298.45 MM
Inlet Header Length 311.15 mm
Outlet Diameter 31.75 MM
Outlet Header Width 39.674 mm
Transmission Oil Cooler Distance between Fittings 179.374 MM
Core Width 11.75 IN
Inlet Header Length 12.25 IN
Outlet Header Width 1.562 IN
Inlet Diameter 31.75 mm
Inlet Header Width 39.7 MM
Transmission Oil Cooler Distance between Fittings 179.4 MM
Core Height 539.75 MM
Core Thickness 31.75 MM
Inlet Header Width 39.674 mm
Outlet Header Length 311.15 mm
Core Height 539.8 MM

Additional Information

Country of Origin (Primary) TH
UPC 06941099983581
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-633 Cross References

BrandPart Number
1-800-Radiator633
APDI8010633
APDI RADS8010633
Advance Auto Parts433633
AutoZoneA633
CRSCUC633
CryoMAX182, 603, 633
DPI DataPoint Inc182, 633, 603
Factory AirRAD633
Federated182, 603, 633
Keystone Auto IndustriesRAD633
Modine633
Murray Heat Transfer433633
NAPA633, NR633A
Northern RadiatorCR603, CR633, CR182
OEM171121253D
OSC633
PACIFIC BEST INC.PR0603A
Performance Radiator633, 633CBR, 603
Platinum ProRAD182, RAD633
Proliance433633
RadCool633
Silla Cooling7601, CU603
Spectra PremiumCU633, CU182, CU649
US Motor WorksUSR633
Valeo732487
Vision633
Vista Pro433633, 633
Visteon633
Volkswagen171121253BA, 171121253BG, 171121253BR, 171121253M, 171121253N, 171121253D

REACH COOLING 41-633 Fits Vehicles

  • Volkswagen Scirocco (1975)
  • Volkswagen Rabbit Pickup (1980-1982)
  • Volkswagen Rabbit Convertible (1980)
  • Volkswagen Rabbit (1977-1982)
