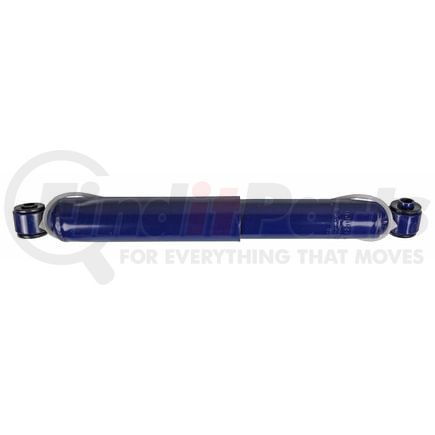

(888) 312-8812 Login SignupMONROE 33218 Monro-Matic Plus Suspension Shock Absorber
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MONROE 33218 Part Description
Manufacturer
Product Description
Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 33218 Specifications
Product Attributes
| Lower Mount Code | LS109 |
| Upper Mount Code | LS108 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Body Diameter | 1.988 IN |
| Compressed Length | 15.04 IN |
| Dust Shield Material | Metal |
| Extended Length | 24.18 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1 7/8" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 9.14 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1 11/16" Sleeve OAL |
| Compressed Length | 382 MM |
| Extended Length | 614.2 MM |
| Travel Length | 232.2 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Diameter | 50.5 MM |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598238771 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 33218 Cross References
| Brand | Part Number |
|---|---|
| AUTOZONE | TS33-32522B |
| AutoZone | TS3332522B |
| Datsun/Nissan | 561107S225, 561107S226, 561107S325, 561107S326, 562007S225, 562007S226, 562007S325, 562007S326, E61109FE0A, E61109FE0B, E61109FE1B, E61109FE4A, E61109FE4B, E6110ZR00A, E6110ZR00B, E6110ZR01B, E6110ZR40A, E6110ZR40B, E62009FF0A, E62009FF0B, E62009FG0A, E62009FG0B, E6200ZR00A, E6200ZR00B, E6200ZR40A, E6200ZR40B |
| FCS | 342491 |
| FCS AUTO PARTS | 342491 |
| GABRIEL | G63878 |
| KYB | 345042, KG6196, 3450010, 345043 |
| NAPA Response | 94363 |
| Nissan | 562007S325, E62009FG0A, E62009FG0B, E6200ZR40A, E6200ZR40B |
| Sensen | 12140905 |
| UNITY AUTOMOTIVE | 255400 |
MONROE 33218 Fits Vehicles
- Nissan TITAN XD (2016-2024)
- Nissan TITAN (2004-2015)
