REACH COOLING 41-1428 Part Description
Manufacturer
Product Description
Radiator
Features & Benefits
- Our fin edges are folded for increased stability and heat disbursement properties.
- Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
- Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
- Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
- Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
- Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
- Folded fin edges increase stability and heat disbursement properties.
- Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
- We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
- Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
- Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
- We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
- Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
- Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
No Shipping Restriction
Radiator

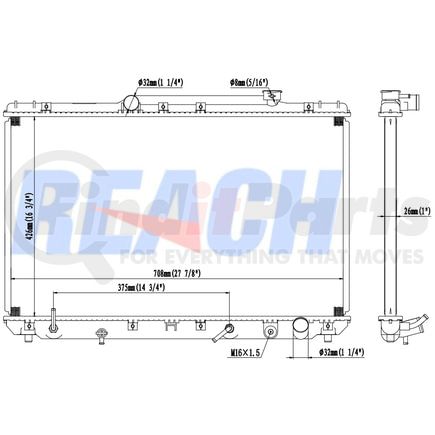

REACH COOLING 41-1428 Specifications
Product Attributes
| Tank Material | Plastic |
| Inlet Diameter | 31.8 MM |
| Core Height | 425.45 MM |
| Inlet Diameter | 31.75 mm |
| Outlet Diameter | 1 1/4 IN |
| Core Width | 708.03 MM |
| Outlet Header Length | 29 1/16 IN |
| Outlet Header Length | 738.2 MM |
| Transmission Oil Cooler Distance between Fittings | 14 3/4 IN |
| Core Width | 708.025 MM |
| Transmission Oil Cooler Distance between Fittings | 374.65 MM |
| Core Height | 425.45 MM |
| Outlet Header Width | 1 15/16 IN |
| Outlet Header Length | 738.174 mm |
| Core Height | 16.75 IN |
| Core Row Quantity | 1 |
| Engine Oil Cooler Included | No |
| Inlet Header Length | 738.2 MM |
| Inlet Header Width | 49.5 MM |
| Transmission Oil Cooler Distance between Fittings | 374.7 MM |
| Radiator Cap Included | No |
| Inlet Header Width | 49.199 mm |
| Outlet Diameter | 31.75 MM |
| Outlet Header Width | 49.199 mm |
| Inlet Header Length | 29 1/16 IN |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Inlet Header Width | 1.937 IN |
| Inlet Diameter | 1 1/4 IN |
| Inlet Header Length | 738.174 mm |
| Core Width | 27.875 IN |
| Outlet Header Width | 49.2 MM |
| Outlet Diameter | 31.8 MM |
REACH COOLING 41-1428 Cross References
| Brand | Part Number |
|---|---|
| APDI | 8011318 |
| BEHR | 376707511 |
| Besuto | BES1428 |
| CRS Automotive | CRS1318, CUC1318 |
| CryoMAX | 1318 |
| DPI (DataPoint Inc) | 1318 |
| Four Seasons | 3087, 2441 |
| Genera - Archived | 1318 |
| Klimoto | KLI1428 |
| Koyo | A1318 |
| Modine | 2363 |
| NAPA | 2363 |
| Nissens | 647681 |
| Northern Factory Sales | 647681, 1318 |
| OSC | 1318 |
| Omega | 24-80570, 2480570 |
| Onix | 1318 |
| PACIFIC BEST INC. | PR1318A |
| Partslink | TO3010114, TO3010115 |
| Proliance | 432363 |
| Spectra Premium | CU1318 |
| Thermal Solutions Manufacturing | 432363 |
| Toyota | 1640074760, 1640003050, 1640003061, 1640003060, 1640074750 |
| Valeo | 735346 |
| Vista Pro | 432363 |
| Visteon | 9760 |
REACH COOLING 41-1428 Fits Vehicles
- Toyota Camry (1992-1996)
REACH COOLING 41-1428 Customer Reviews
No reviews yet
Be the first to review this product!
REACH COOLING 41-1428 Manufacturer Information
Founded in 1999, Reach Cooling® is a worldwide leader in the manufacture and distribution of aftermarket cooling products for light, medium, and heavy duty truck applications. Its fasting-growing division is within its medium and heavy duty truck part sector, offering more than 30 HD condensers, more than 50 HD charge air coolers, and more than 100 HD radiators. All these products are manufactured to meet the highest OE standards to fit some of the most popular US truck makes, including Peterbilt, Mack, International, Isuzu, GMC, Ford, and Freightliner. Headquartered in Miami, Florida, Reach Cooling is fully committed to providing customers with only the best products, most competitive prices, and exceptional service.
