RANCHO RS5420 Part Description
Manufacturer
Product Description

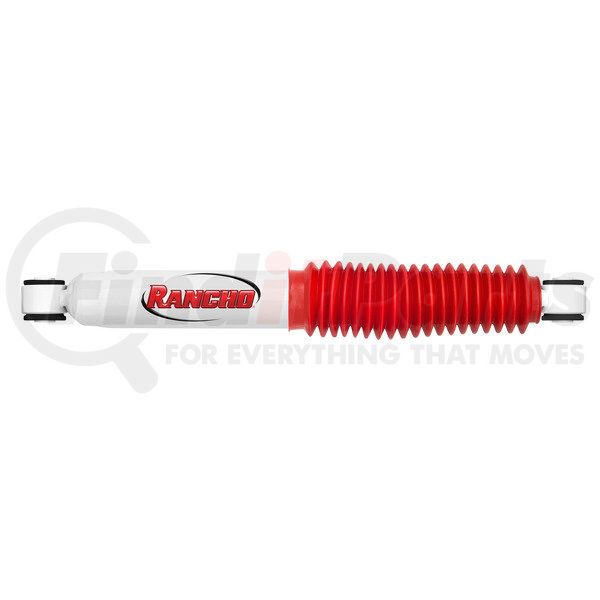

RS5000 Steering Damper
Features & Benefits
- IMPROVED HANDLING AND PERFORMANCE -- Reduces wheel shimmy, bump steer and vibration which helps minimize on- or off-road driver fatigue
- ACCOMMODATES LARGER TIRES -- Engineered for vehicles with oversized wheels and tires
- ENGINEERED TO LAST -- Features protective boot to safeguard shock rod and oil seal
- HANDLES EXTREME TEMPERATURE CHANGES -- Twin-tube cellular gas design filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
- HANDLES EXTREME TEMPERATURE CHANGES -- Twin-tube cellular gas design filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
RANCHO RS5420 Specifications
Product Attributes
| Compressed Length | 13.24 IN |
| Travel Length | 7.71 in |
| Extended Length | 20.95 in |
| Dust Shield Included | Yes |
| Body Diameter | 2.181 |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Lower Mount Code | LS38 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL |
| Part Description | Steering Damper |
| Parts Pack(s) | None |
| Upper Mount Code | LS24 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.3/8" Sleeve OAL |
| Compressed Length | 336.3 MM |
| Extended Length | 532.1 MM |
| Travel Length | 195.8 MM |
| Body Diameter | 2.181 IN |
| Body Diameter | 55.4 MM |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Grade Type | Performance |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01164 |
| UPC | 00039703010702 |
| VMRS Code | 015004022 |
| UNSPSC | 25174202 |
RANCHO RS5420 Cross References
| Brand | Part Number |
|---|---|
| Gabriel | 14040 |
| Jeep | 68251580AB, 68251580AC, 68251580AE, 68251580AA, 68454399AA, 68251580AD, 68251580AF, 68508680AA, 68624105AA, 68251580AG |
| MONROE | SC2974 |
| Monroe Shocks & Struts | SC2974 |
| NAPA Shocks | SC2974 |
| RANCHO | RS77420 |
| Rancho | RS5420 |
RANCHO RS5420 Fits Vehicles
- Jeep Gladiator (2020-2024)
- Jeep Wrangler (2018-2024)
