(888) 312-8812 Login SignupMOTORAD CH4319 Engine Coolant Water Outlet
Tap to view 6 more
$7049
Limited availability at this price!
In Stock
Get it by Thursday, Mar 12
MOTORAD CH4319 Part Description
Manufacturer
Product Description

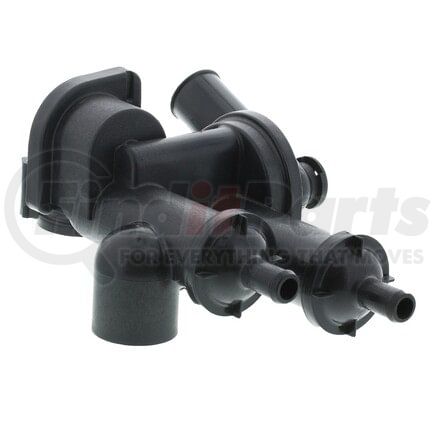

Engine Coolant Water Outlet
Features & Benefits
- All-in-one, bolt-on solution that includes everything needed for a complete job
- Includes housing and seal
- Easy, one step fit and installation
- No special tools required
- Meets or exceeds all OEM standards
MOTORAD CH4319 Specifications
Product Attributes
| Gasket/Seal Material | Rubber |
| Number Of Seals | 1 |
| Outlet Port Quantity | 5 |
| Bolts Included | No |
| Mounting Hardware Included | No |
| Outlet Diameter | 0.66 in, 0.66 in, 1.37 in, 1.72 in, 1.84 in |
| Material | Plástico |
| Color | Negro |
| Outlet Port Diameter | 0.66 IN |
| Height | 7.00 |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 3 |
| Mounting Hole Diameter | 0.36 IN |
| Bolt Hole Center To Bolt Hole Center | 3.77 IN |
| Fitting Angle | 90.0 DD |
| Flange Width | 3.20 IN |
| Flange Thickness | 0.57 in |
| Flange Length | 3.84 IN |
| Gasket Type | Gasket O-Ring |
| Outlet Quantity | 5 |
| Inlet Quantity | 3 |
| Bleeder Screw Included | No |
| Outlet Port Outside Diameter | 1.49 IN |
| Inlet Port Diameter | 1.57 IN |
| Outlet Tube Length | 1.66 IN |
| Inlet Tube Length | 0.00 IN |
| Gasket Or Seal Material | Rubber |
| Sensor Port Count | 1 |
| Bypass Outside Diameter | 0.73 IN |
| Bypass Inside Diameter | 0.47 IN |
| Seal Quantity | 1 |
| Bypass Holes | Yes |
| Gasket Or Seal Material | Rubber |
| Seal Quantity | 1 |
| Threaded Plug Included | No |
| 10685 | 0.52 IN |
| Bypass Hose Connection Type | Barbed |
| 10800 | 1.23 IN |
| Bypass Quantity | 2 |
| Inlet Hose Connection Type | Bolt On |
| Outlet Hose Connection Type | Barbed |
| Gasket Press | No |
| Gasket Seat | Yes |
| 10808 | 0.19 IN |
| 10809 | 2.27 IN |
| Gasket Quantity | 1 |
| Grade Type | OEM |
| Height | 7.00 IN |
| Mounting Hardware Included | No |
| Bolt Hole Quantity | 3 |
| Inlet Port Inside Diameter | 1.57 IN |
| Outlet Port Inside Diameter | 1.12 IN |
| Inlet Port Outside Diameter | 1.85 IN |
| Inside Diameter | 1.57 IN |
| Sensor Attachment Type | Push In |
| Outlet Port Diameter | 16.76 MM |
| Height | 177.8 MM |
| Inside Diameter | 39.88 MM |
| Inlet Port Diameter | 39.88 MM |
| Flange Length | 97.54 MM |
| Flange Thickness | 14.48 MM |
| Flange Width | 81.28 MM |
| Mounting Hole Diameter | 9.14 MM |
| Inlet Port Outside Diameter | 46.99 MM |
| Outlet Port Inside Diameter | 28.45 MM |
| Inlet Port Inside Diameter | 39.88 MM |
| Bolt Hole Center To Bolt Hole Center | 95.76 MM |
| Inlet Tube Length | 0.00 MM |
| Outlet Tube Length | 42.16 MM |
| Outlet Port Outside Diameter | 37.85 MM |
| 9814 | 18.54 MM |
| 9815 | 11.94 MM |
| 10685 | 13.21 MM |
| 10800 | 31.24 MM |
| 10808 | 4.83 MM |
| 10809 | 57.66 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8409915085 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00055644208329 |
MOTORAD CH4319 Cross References
MOTORAD CH4319 Fits Vehicles
- Chrysler 200 (2011-2014)
- Dodge Avenger (2009-2014)
- Chrysler Sebring (2009-2010)
- Dodge Journey (2009-2018)
- Dodge Caliber (2008-2012)
- Jeep Patriot (2007-2017)
- Jeep Compass (2007-2017)
