CENTRIC 320.34124H Part Description
Manufacturer
Product Description

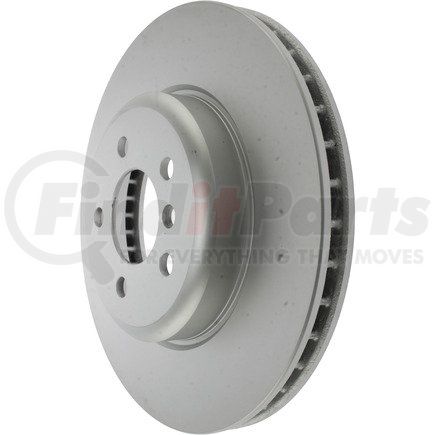

Centric GCX Rotor with Full Coating and High Carbon Content
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.34124H Specifications
Product Attributes
| Weight [cntrc] Kgs | 12.810 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Hat Id [cntrc] In | 7.350 |
| Misc Holes [cntrc] | 1 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Lbs | 26.850 |
| Hat Id [cntrc] Mm | 186.700 |
| Stud/Lug Hole Diameter | 0.654 IN |
| Stud/Lug Hole Diameter | 16.600 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Center Hole Diameter | 2.953 IN |
| Center Hole Diameter | 75.000 MM |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 348.000 MM |
| Outside Diameter | 13.701 IN |
| Overall Height | 2.618 IN |
| Overall Height | 66.500 MM |
| Hat Finish | Coated |
| Disc Finish | Fully Coated |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30.000 MM |
| Discard Thickness | 28.400 MM |
| Discard Thickness | 1.118 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590387612 |
CENTRIC 320.34124H Cross References
CENTRIC 320.34124H Fits Vehicles
- BMW 640i xDrive Gran Coupe (2014-2016)
- BMW 640i xDrive (2014-2016)
- BMW 535d xDrive (2014-2016)
- BMW 535d (2014-2016)
- BMW ActiveHybrid 5 (2012-2016)
- BMW 535i xDrive (2011-2016)
- BMW 640i Gran Coupe (2013-2016)
- BMW 640i (2012-2016)
- BMW 535i (2011-2016)
