(888) 312-8812 Login SignupDORMAN B90310 Suspension Ball Joint
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

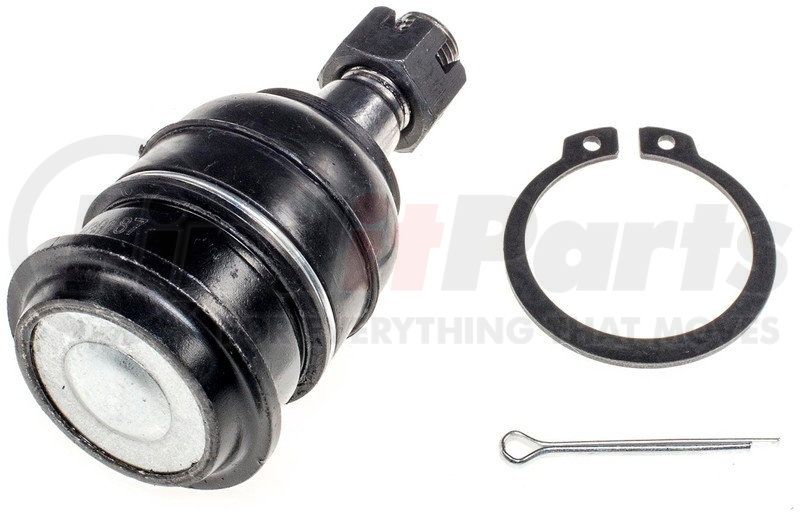

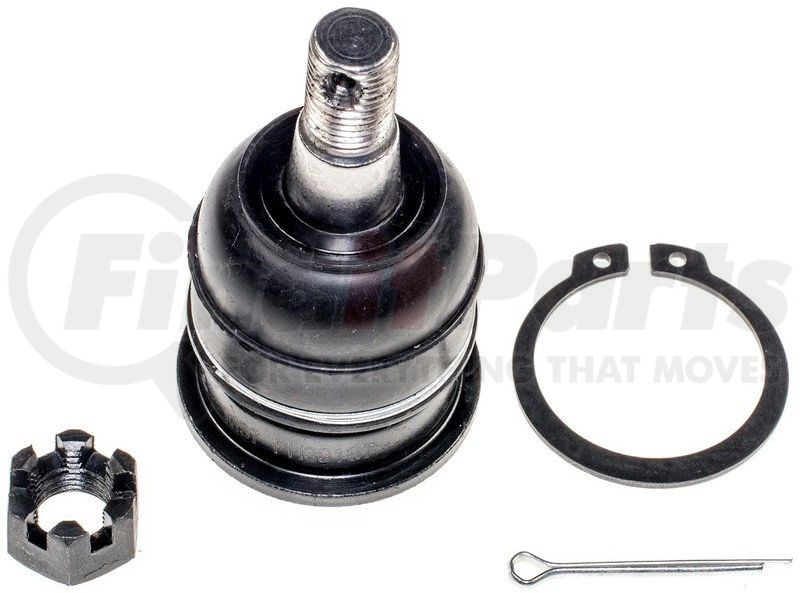

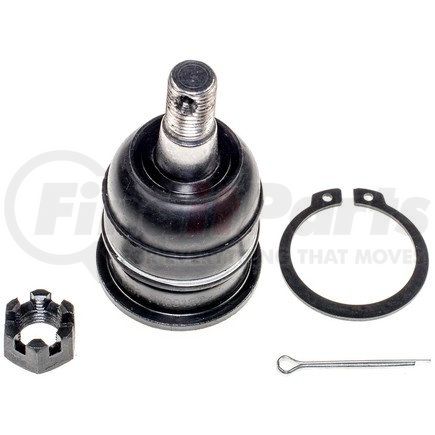

DORMAN B90310 Part Description
Manufacturer
Product Description
Suspension Ball Joint
Application Summary
Scion 2015-08, Scion 2006-04, Toyota 2021-00
Features & Benefits
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Suspension, Ball, Joint, Joints, Balls, Suspensions
DORMAN B90310 Specifications
Product Attributes
| Mounting Hardware Included | Oui |
| Mounting Hole Quantity | 0 |
| Adjustable | Non |
| Greaseable | Non |
| Stud Type | Cono |
| Mounting Type | A presión |
| Dust Boot Material | Élastomère |
| Attachment Type | Cono |
| Bearing Material | Polímero |
| Material | Acero |
| Bolts/Studs Included | Oui |
| Stud Thread Diameter | 12 MM |
| Housing Press Fit Diameter | 36.8 mm |
| Castle Nut Included | Oui |
| Package Contents | 1 Snap Ring |
| Suspension Grade Type | Reemplazo estándar |
| Thread Pitch | M1.25 |
| Cotter Pin Hole | Oui |
| Length | 111 MM |
| Color | Gris |
| Width | 59 MM |
| Type | Roscado |
| Height | 85.03 MM |
| Wrench Size | 12 mm MM |
| Maximum Outside Diameter | 61 MM |
| Grease Fitting Included | Non |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Ball Joint Assembly | Oui |
| Cotter Pin Included | Non |
| Washers Included | Non |
| Nuts Included | Oui |
| Stud Thread Length | 35.5 MM |
| Bushing Quantity | 0 |
| Mounting Bolts Included | Non |
| Mount Plate Included | Non |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 2 IN |
| Stud Tapered End 2 Diameter | 22 MM |
| Stud Tapered End 1 Diameter | 27.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Articulación de rótula instalada | Sí |
| Ball Joint Installed | Oui |
| Bushing Included | Non |
| Contenidos del paquete | 1 anillo de retención |
| Diámetro del acoplado a presión de la caja | 36,8 mm mm |
| Housing Press Fit Diameter | 36.8 mm MM |
| Pernos/argollas incluidos | Sí |
| Thread Pitch | M1.25 mm |
| Nuts Included | Oui |
| Stud Thread Pitch | 1.5 mm MM |
| Stud Thread Diameter | 12 mm MM |
| Paso de rosca | M1.25 MM |
| Espacio de la rosca del espárrago | 1,5mm MM |
| Diámetro de la rosca de la argolla | 12 mm MM |
Additional Information
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special UOM | LF |
| Warranty Special | Limited |
| UPC | 00843295024487 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DORMAN B90310 Cross References
| Brand | Part Number |
|---|---|
| 555 | SB-3602 |
| ACDelco | 45D2262 |
| Centric Parts | 610.44065 |
| Delphi | TC1006, TC5732, TC4186, TC4208 |
| MEVOTECH | MK90310 |
| MOOG | K500118 |
| MOOG Chassis Products | K500118 |
| Mcquay-Norris | FA2150 |
| Mevotech Original Grade | GK90310 |
| Mevotech Supreme | MK90310, MS86532 |
| QUICK STEER | K500118 |
| QuickSteer | K90310 |
| SUSPENSIA | X50BJ4058 |
| SYD | 1025005 |
| TRW | JBJ7537 |
| Toyota | 4330859035, 4806809150, 4806859145, 4806909140, 4806959125, 4806959135 |
| XRF | K90310 |
| XRF Chassis | K90310 |
DORMAN B90310 Fits Vehicles
- Scion xB (2004-2006)
- Toyota Echo (2000-2005)
- Scion xA (2004-2006)
- Scion xD (2008-2014)
- Toyota Yaris (2004-2020)
- Scion iQ (2012-2015)
- Toyota Prius C (2012-2021)
- Toyota MR2 Spyder (2000-2006)
