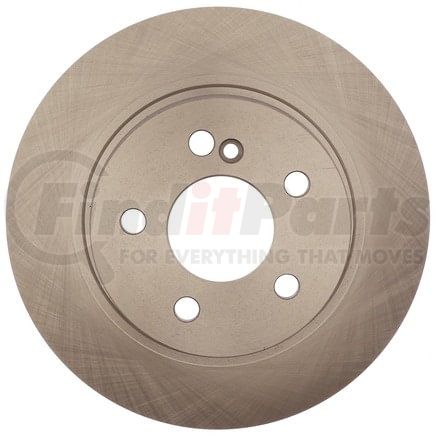

(888) 312-8812 Login SignupRAYBESTOS 980729R Raybestos R-Line Brake Rotor
$3899
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Mar 19
RAYBESTOS 980729R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2012-2008 Mercedes-Benz C300 Rear, 2015-2010 Mercedes-Benz C250 Rear, 2009-2008 Mercedes-Benz C230 Rear, 2012 Mercedes-Benz C180 Rear, 2012 Mercedes-Benz C200 Rear, 2009-2008 Mercedes-Benz C280 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980729R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.327 IN |
| Discard Thickness | 8.3 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.122 IN |
| Inside Diameter | 206.3 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.598 IN |
| Mounting Bolt Hole Diameter | 15.2 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.396 IN |
| Nominal Thickness | 10.05 MM |
| Outside Diameter | 11.814 IN |
| Outside Diameter | 300.1 MM |
| Overall Height | 2.266 IN |
| Overall Height | 57.55 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213286717 |
RAYBESTOS 980729R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH200843, YH200843C, YH200843P |
| AUTOZONE | 76617, 76617DG |
| Autoxtra | AX901058, AX901058P |
| BENDIX | PRT6070 |
| BRAKEBEST | 36010991, 980729 |
| BrakeBest | 980729RGS |
| Brembo | 08.A612.41, 08.A612.4X |
| CENTRIC | 120.35112, 121.35112, 125.35112, 126.35112CSL, 126.35112CSR, 126.35112SL, 126.35112SR, 127.35112L, 127.35112R, 128.35112CL, 128.35112CR, 128.35112L, 128.35112R, 320.35112 |
| Centric Parts | 120.35112, 121.35112, 125.35112, 126.35112CSL, 126.35112CSR, 126.35112SL, 126.35112SR, 127.35112L, 127.35112R, 128.35112CL, 128.35112CR, 128.35112L, 128.35112R, 320.35112 |
| DURA CORP | BR34414, BR901058 |
| DuraGo | BR901058 |
| Dynamic Friction Company | 604-63086 |
| MAGMA PRODUCTS | PMR383068 |
| MERCEDES-BENZ | 2044230612, 2044230912, 2044231512 |
| NAPA BRAKES | SDK6546 |
| NEWTEK AUTOMOTIVE | 34414 |
| Newtek Automotive USA | 34414 |
| PAGID | 355114212 |
| PAGID Racing | 355114212 |
| POWERSTOP | EBR1047EVC |
| PROMAX | 14-34414 |
| QUALIS | 45556 |
| TRW | 4805 |
| UAP | R35115 |
| WABCO | PS180151 |
| WABCO - Archived | PS180151 |
| WAGNER BRAKE | BD180151 |
| WINHERE | 661776 |
| WORLDPAC | 1407-76055, 1427-530152 |
RAYBESTOS 980729R Fits Vehicles
- Mercedes-Benz C180 (2012)
- Mercedes-Benz C200 (2012)
- Mercedes-Benz C250 (2010-2016)
- Mercedes-Benz C280 (2008-2009)
- Mercedes-Benz C230 (2008-2009)
- Mercedes-Benz C300 (2008-2012)
