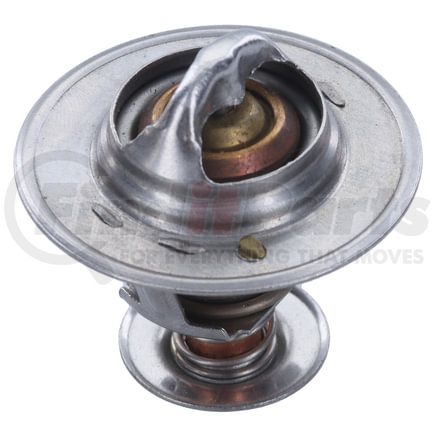

(888) 312-8812 Login SignupMOTORAD 322-180 Engine Coolant Thermostat
Tap to view 6 more
$1499
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Mar 20
MOTORAD 322-180 Part Description
Manufacturer
Product Description
Thermostat - 180 Degrees
Features & Benefits
- High grade stainless steel and copper construction
- Meets or exceeds OEM standards
- Consistent and precise response to cooling system needs
- Original equipment design for worry-free direct fit replacement
- 100% tested and calibrated
MOTORAD 322-180 Specifications
Product Attributes
| Gasket Or Seal Material | Caucho |
| Electric | No |
| Seal Material | Caucho |
| Depth | 1.30 IN |
| Flange Thickness | 0.05 in |
| Installation Tool Included | No |
| Start to Open Temperature | 180.0 FA |
| Bypass Flange Length | 0.11 IN |
| Bypass Flange Diameter | 1.09 IN |
| Seal Quantity | 1 |
| Engine Coolant Thermostat Quantity | 1 |
| Jiggle Pin Check Valve Quantity | 1 |
| Flange Height | 0.16 IN |
| Includes Jiggle Pin Check Valve | Yes |
| Outlet Inside Diameter | 25.91 mm |
| Outlet Outside Diameter | 1.25 in |
| Valve Outside Diameter | 1.16 in |
| Jiggle Pin Weep Hole | Yes |
| Seal Type | O-Ring |
| Material | Copper |
| Gasket or Seal Pre-Installed | No |
| Sealing Flange Outside Diameter | 2.04 IN |
| Height Between Flanges | 1.23 IN |
| MAP Controlled | No |
| Design | OEM |
| Color | Brass |
| Gasket Or Seal Required | Yes |
| Gasket Quantity | 0 |
| Gasket Or Seal Included | Yes |
| Grade Type | OEM |
| Height | 2.04 IN |
| Type | Estándar |
| Bolt Hole Quantity | 0 |
| Sealing Flange Outside Diameter | 51.82 MM |
| Height Between Flanges | 31.24 MM |
| Height | 51.82 MM |
| Start to Open Temperature | 82.22 CE |
| Flange Thickness | 1.27 MM |
| Depth | 33.02 MM |
| 9812 | 2.79 MM |
| Bypass Flange Diameter | 27.69 MM |
| Flange Height | 4.06 MM |
Additional Information
| Country of Origin (Primary) | IL |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Harmonized Tariff Code (Schedule B) | 9032100090 |
| Harmonized Tariff Code (HTS) | 9032100090 |
| UPC | 00055644022734 |
MOTORAD 322-180 Cross References
MOTORAD 322-180 Fits Vehicles
- Mazda RX-7 (1989-1991, 1993-1995)
MOTORAD 322-180 Customer Reviews
No reviews yet
Be the first to review this product!
MOTORAD 322-180 Manufacturer Information
Established in 1958, MotoRad® specializes in designing and manufacturing advanced engine and thermal solutions for automotive OE and aftermarket applications. They offer a comprehensive catalog that includes thermostats, mass airflow sensors, solenoids, ignition coils, cam and crank sensors, oil, fuel, and coolant caps, and other related components. Motorad products are made to comply with OE standards down to the smallest detail, ensuring a seamless fit and reliable performance every time. This dedication to precision engineering and quality led to Motorad earning prestigious awards, including the General Motors Supplier Quality Excellence Award, the Automotive Aftermarket Product Expo Award, ACPN Gold Award, and many more.
