(888) 312-8812 Login SignupCENTRIC 320.34093 Centric GCX Rotor with Partial Coating
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.34093 Part Description
Manufacturer
Product Description

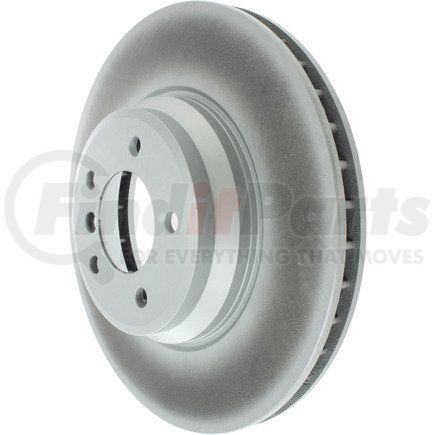

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.34093 Specifications
Product Attributes
| Misc Holes [cntrc] | 1 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 24.200 |
| Vane Style [cntrc] | Straight |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 11.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 28.400 MM |
| Discard Thickness | 1.118 IN |
| Nominal Thickness | 1.177 IN |
| Nominal Thickness | 29.900 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 73.300 MM |
| Overall Height | 2.886 IN |
| Outside Diameter | 348.000 MM |
| Outside Diameter | 13.701 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.106 IN |
| Center Hole Diameter | 78.900 MM |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.600 MM |
| Stud/Lug Hole Diameter | 0.575 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590300758 |
