(888) 312-8812 Login SignupCENTRIC 320.65001 Centric GCX Rotor with Partial Coating
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.65001 Part Description
Manufacturer
Product Description

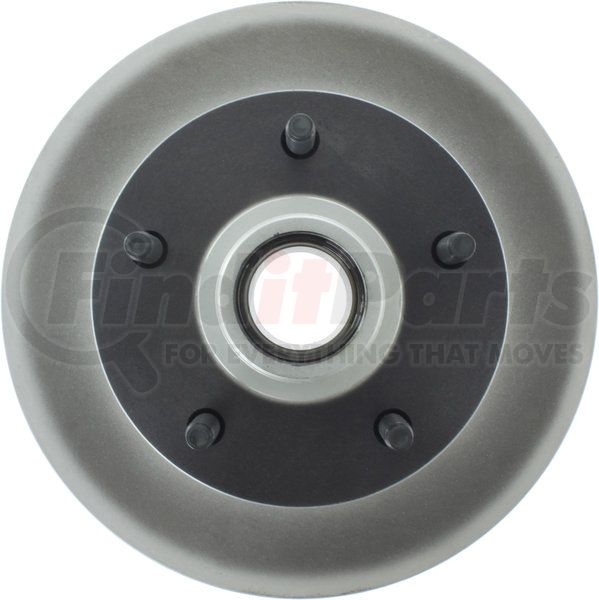

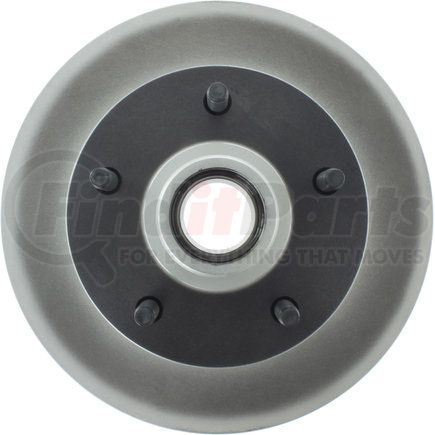

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.65001 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Outer Bearing # [cntrc] | 410.91012 |
| Weight [cntrc] Kgs | 13.690 |
| Inner Seal # [cntrc] | 417.65000 |
| Inner Bearing # [cntrc] | 410.91013 |
| Weight [cntrc] Lbs | 30.120 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Hub & Rotor |
| Discard Thickness | 28.500 MM |
| Discard Thickness | 1.122 IN |
| Nominal Thickness | 30.100 MM |
| Nominal Thickness | 1.185 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 137.300 MM |
| Overall Height | 5.406 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 297.600 MM |
| Rotor Outside Diameter | 11.717 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 86.500 MM |
| Center Hole Diameter | 3.406 IN |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590301991 |
